CY2305CSXC-1 - Infineon

Description: Clock Buffer 3.3VZDB COM

Download CY2305CSXC-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

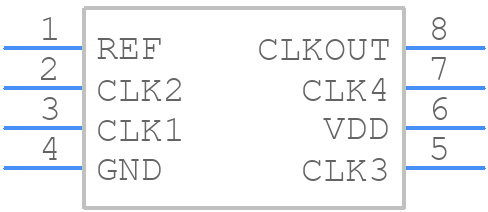

CY2305CSXC-1 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY2305CSXC-1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - soic-08
click to zoom
3D Models
CY2305CSXC-1 - Infineon - 3D model - Small Outline Packages - soic-08
click to zoom

CY2305CSXC-1 Details

  • Manufacturer Part Number:

    CY2305CSXC-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Family:

    2305

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.889 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    8.7 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.2 ns

  • Seated Height-Max:

    1.727 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    3.8985 mm

  • fmax-Min:

    133.33 MHz

CY2305CSXC-1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2341, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • According to Infineon's application note AN2341, it's essential to provide a stable power supply with adequate decoupling capacitors (e.g., 10uF and 100nF) close to the device to filter out noise and ensure reliable operation.
  • Although the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance.
  • Infineon provides a troubleshooting guide in the application note AN2341, which includes steps to identify and resolve common issues, such as clock signal integrity, output signal quality, and power supply-related problems.
  • Yes, Infineon recommends using EMI mitigation techniques such as shielding, grounding, and filtering to minimize electromagnetic radiation. The application note AN2341 provides guidelines for EMI mitigation and compliance with regulatory standards.
