CY2305SXI-1HT - Infineon

Description: Fanout Buffer (Distribution), Zero Delay Buffer IC 133.33MHz 1 8-SOIC (0.154", 3.90mm Width)

Download CY2305SXI-1HT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

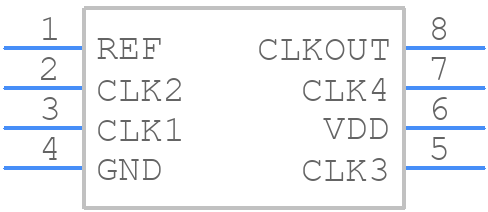

CY2305SXI-1HT - Infineon - PCB symbol
click to zoom
PCB Footprints
CY2305SXI-1HT - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOIC (150 Mils)-ren3
click to zoom
3D Models
CY2305SXI-1HT - Infineon - 3D model - Small Outline Packages - 8-pin SOIC (150 Mils)-ren3
click to zoom

CY2305SXI-1HT Details

  • Manufacturer Part Number:

    CY2305SXI-1HT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Family:

    2305

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.889 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    8.7 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.25 ns

  • Seated Height-Max:

    1.727 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    3.8985 mm

  • fmax-Min:

    133.33 MHz

CY2305SXI-1HT Frequently Asked Questions (FAQs)

  • A good PCB layout for the CY2305SXI-1HT involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper powering and decoupling, use a high-quality power supply with low ripple and noise, and decouple the device with a 10uF capacitor in parallel with a 100nF capacitor, placed as close to the device as possible.
  • The CY2305SXI-1HT can support clock frequencies up to 200 MHz, but the actual frequency limit may vary depending on the specific application and PCB layout.
  • To configure the CY2305SXI-1HT for spread spectrum clocking, set the SS pin high and adjust the frequency modulation rate and deviation using external resistors and capacitors according to the datasheet.
  • To manage thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the device. The device can operate up to 85°C, but reducing the junction temperature can increase reliability and lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY2305SXI-1HT Overview

Use the download button to access the CY2305SXI-1HT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY230, or try a keyword search, such as Clock Drivers
