Infineon provides a recommended PCB layout in their application note AN2341, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
According to Infineon's datasheet, the CY2308SXC-1 requires a 3.3V power supply with a minimum of 10uF decoupling capacitance between VCC and GND. Additionally, it's recommended to use a low-ESR capacitor and to place it as close as possible to the device.
The CY2308SXC-1 can support clock frequencies up to 133 MHz, but the actual frequency limit may depend on the specific application, PCB layout, and signal integrity. It's recommended to consult Infineon's application notes and simulation tools to determine the maximum clock frequency for a specific design.
To configure the CY2308SXC-1 for SSC mode, you need to set the SSC_EN pin high and program the SSC frequency modulation rate using the SSC_RATE[2:0] pins. Refer to the datasheet and application notes for detailed configuration and programming information.
The CY2308SXC-1 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat efficiently. Additionally, Infineon recommends using thermal vias and a heat sink to further improve thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY2308SXC-1 Overview

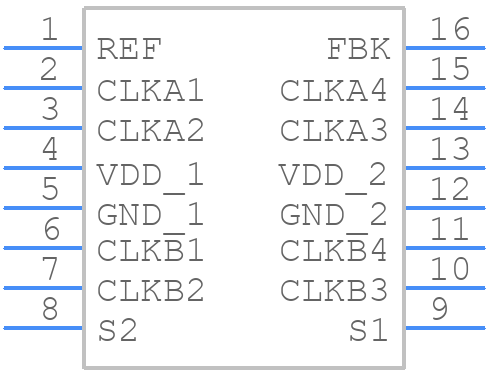

Use the download button to access the CY2308SXC-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY230,
or try a keyword search, such as Clock Drivers
