Infineon provides a recommended PCB layout in the application note AN2341, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The CY2308SXI-1H requires a stable power supply with adequate decoupling capacitors to ensure reliable operation. Infineon recommends using a 3.3V power supply with a minimum of 10uF decoupling capacitor between VCC and GND, and an additional 100nF capacitor between VCC and GND for high-frequency noise filtering.
The CY2308SXI-1H supports clock frequencies up to 133MHz, but the actual maximum frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information on clock frequency limitations.
The CY2308SXI-1H supports SSC operation, which can help reduce electromagnetic interference (EMI). To configure SSC, set the SSC_EN pin high and adjust the SSC_MOD pin to select the desired modulation frequency and amplitude. Consult the datasheet and application notes for more information on SSC configuration and optimization.
The CY2308SXI-1H has a maximum junction temperature of 150°C. To ensure reliable operation, Infineon recommends using a thermal management strategy that includes heat sinks, thermal vias, and thermal interface materials to dissipate heat effectively. Consult the datasheet and application notes for more information on thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY2308SXI-1H Overview

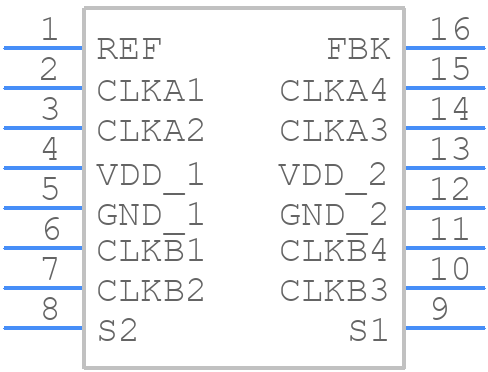

Use the download button to access the CY2308SXI-1H schematic symbol, PCB footprint, and 3D model.
