Part Image

CY2309CSXI-1H - Infineon

Description: Zero Delay Buffer 9-Out LVCMOS Single-Ended 16-Pin SOIC Tube

Download CY2309CSXI-1H Model

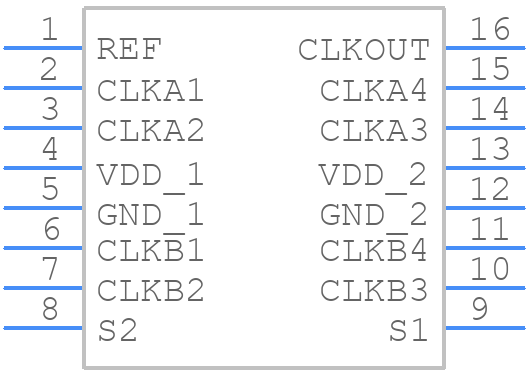

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY2309CSXI-1H - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 16-pin SOIC (150 Mils)_2022
click to zoom
3D Models
CY2309CSXI-1H - Infineon  - 3D model - Small Outline Packages - 16-pin SOIC (150 Mils)_2022
click to zoom

CY2309CSXI-1H Details

  • Manufacturer Part Number:

    CY2309CSXI-1H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.4

  • Family:

    2309

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.893 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    8.7 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.2 ns

  • Seated Height-Max:

    1.727 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.8985 mm

  • fmax-Min:

    133.33 MHz

CY2309CSXI-1H Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2341, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • According to Infineon's recommendations, the CY2309CSXI-1H should be powered with a stable 3.3V or 5V supply, and decoupling capacitors (e.g., 100nF and 10uF) should be placed close to the device to filter out noise and ensure stable operation.
  • The CY2309CSXI-1H supports clock frequencies up to 133 MHz, but the actual frequency limit may depend on the specific application, PCB layout, and signal integrity. It's recommended to consult Infineon's application notes and technical support for specific guidance.
  • Yes, the CY2309CSXI-1H is designed to support hot-swap and hot-plug applications. However, it's essential to follow Infineon's guidelines for power sequencing, voltage ramp-up, and signal integrity to ensure reliable operation and prevent damage to the device.
  • Infineon provides a troubleshooting guide in the application note AN2341, which covers common issues, debugging techniques, and tools to help identify and resolve problems with the CY2309CSXI-1H.
