Infineon provides a recommended PCB layout in their application note AN2341, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
According to Infineon's datasheet, the CY2309SXI-1 requires a 3.3V power supply with a minimum of 10uF decoupling capacitor between VCC and GND, and an additional 100nF capacitor between VCC and GND for each output bank. Proper power supply decoupling is crucial to ensure stable operation and minimize noise.
Although the datasheet specifies a maximum clock frequency of 133 MHz, Infineon's application note AN2341 recommends a maximum clock frequency of 100 MHz for optimal performance and to ensure reliable operation.
To configure the CY2309SXI-1 for SSC mode, set the SSC_EN pin high and program the SSC frequency and modulation rate using the I2C interface. Refer to the datasheet and application note AN2341 for detailed configuration and programming guidelines.
The CY2309SXI-1 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using thermal vias or heat sinks if operating in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY2309SXI-1 Overview

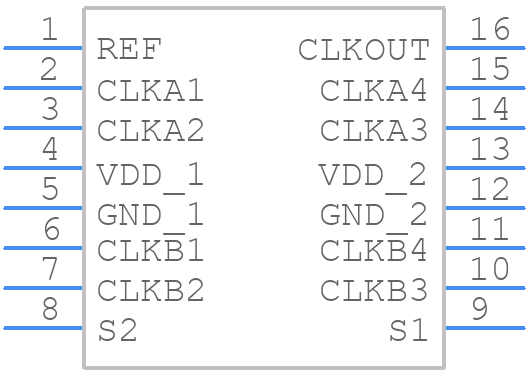

Use the download button to access the CY2309SXI-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY230,
or try a keyword search, such as Clock Drivers
