Infineon provides a recommended PCB layout in the application note AN2341, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
According to Infineon's recommendations, the CY2309SXI-1H requires a stable power supply with a minimum of 3.3V and a maximum of 5V. Decoupling capacitors (e.g., 100nF and 10uF) should be placed close to the device to filter out noise and ensure stable operation.
The CY2309SXI-1H supports clock frequencies up to 200 MHz, but the actual frequency limit may depend on the specific application, PCB layout, and signal integrity. It's recommended to consult Infineon's application notes and perform thorough signal integrity analysis to ensure reliable operation.
The CY2309SXI-1H supports SSC operation, which can be configured through the device's control pins (e.g., SSC_EN and SSC_FREQ). Refer to the datasheet and application notes for specific configuration details and recommended settings.
The CY2309SXI-1H has a maximum junction temperature (Tj) of 150°C. To ensure reliable operation, it's essential to implement a thermal management strategy, such as using thermal vias, heat sinks, or thermal interface materials, to keep the device temperature below the maximum rating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY2309SXI-1H Overview

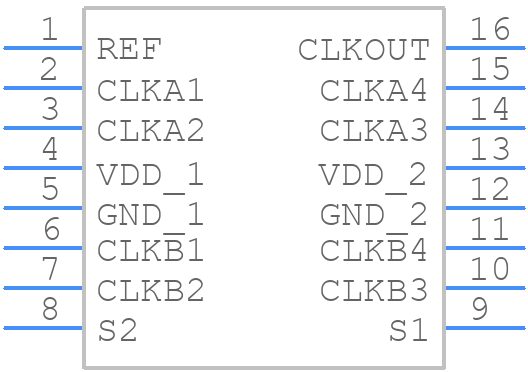

Use the download button to access the CY2309SXI-1H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY230,
or try a keyword search, such as Clock Drivers
