Texas Instruments recommends following the PCB layout guidelines provided in the application note 'PCB Layout Guidelines for CY29FCT520BTSOC' (SLUA623). This includes keeping the signal traces short, using a solid ground plane, and placing decoupling capacitors close to the device.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions and thermal management guidelines. This includes using a heat sink, ensuring good airflow, and keeping the junction temperature (Tj) below the maximum rating of 150°C.
When using the CY29FCT520BTSOC in a system with multiple voltage domains, it's crucial to ensure that the device is powered from a single voltage domain and that the input signals are properly level-shifted to prevent damage or malfunction. Additionally, consider using voltage translators or level shifters to ensure signal integrity.
To troubleshoot issues with the CY29FCT520BTSOC, start by reviewing the device's datasheet and application notes. Check the power supply, clock signals, and input/output connections. Use oscilloscopes or logic analyzers to monitor signals and identify potential issues. If necessary, contact Texas Instruments' technical support for further assistance.
When using the CY29FCT520BTSOC in a system with high-speed signals (>100 MHz), it's essential to follow proper signal integrity guidelines, such as using controlled impedance traces, minimizing signal reflections, and using termination resistors. Additionally, consider using signal conditioning circuits or repeaters to ensure signal quality.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY29FCT520BTSOC Overview

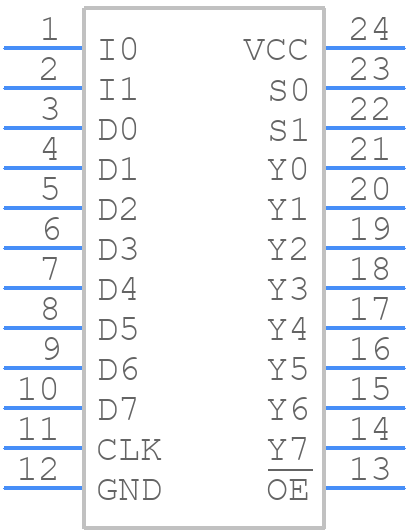

Use the download button to access the CY29FCT520BTSOC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY29F,
or try a keyword search, such as DSP Peripherals
