The CY62167GE30-45BV1XI can operate from -40°C to 85°C (industrial temperature range) and from -40°C to 125°C (extended temperature range) with reduced performance.
The CY62167GE30-45BV1XI requires a power-up sequence where VCC must be applied before VCCQ, and VCCQ must be removed before VCC during power-down. Additionally, the chip select (S) and output enable (OE) pins must be in a logic high state during power-up and power-down.
The CY62167GE30-45BV1XI supports clock frequencies up to 45 MHz.
To ensure data integrity, it is recommended to use a voltage supervisor or a power-on reset (POR) circuit to ensure that the SRAM is not accessed during power-up and power-down cycles. Additionally, the SRAM should be in a standby mode (CE = HIGH) during power-down to minimize power consumption.
Yes, the CY62167GE30-45BV1XI has a separate VCCQ pin for the output buffers, which allows it to interface with systems having different voltage domains. However, ensure that the voltage levels are within the recommended operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY62167GE30-45BV1XI Overview

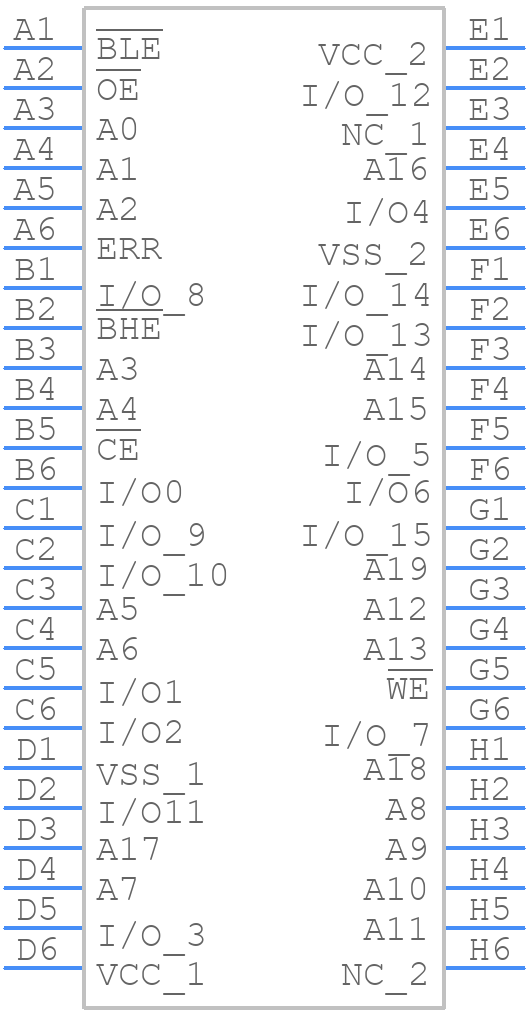

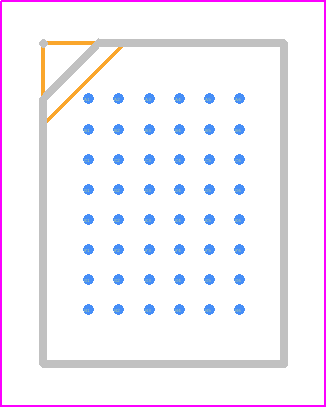

Use the download button to access the CY62167GE30-45BV1XI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY621,
or try a keyword search, such as SRAMs
