Description:16-Mbit low-power CMOS SRAM with embedded ECC, configurable as 1M×16 or 2M×8. It supports 45 ns access time, 2.2–3.6 V operation, 1.5 µA standby current (typ), and ECC for single-bit error correction with an ERR output (GE30 only). Packaged in 48-pin TSOP I or 48-ball VFBGA, with TTL-compatible I/Os, byte control (BLE/BHE), and byte power-down mode for low power standby.
Infineon provides a recommended PCB layout in their application note AN201305, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The power-up sequence should follow the guidelines outlined in the datasheet, with VCC powering up before VIO. Additionally, it's recommended to use a power-up sequence controller or a voltage supervisor to ensure a controlled power-up sequence and prevent damage or malfunction.
The CY62167GE30-45ZXI has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to follow proper thermal management practices, such as using a heat sink, thermal interface material, and ensuring good airflow. Additionally, the device should be operated within the recommended temperature range, and thermal monitoring should be implemented to prevent overheating.
To troubleshoot issues with the CY62167GE30-45ZXI, start by reviewing the datasheet and application notes to ensure correct usage and configuration. Then, use debugging tools such as logic analyzers or oscilloscopes to capture and analyze the signals. Additionally, check for any firmware or software updates that may address known issues or bugs.
The CY62167GE30-45ZXI has built-in ESD protection, but it's still essential to follow proper ESD handling and protection procedures during manufacturing and assembly, such as using ESD-safe materials, grounding straps, and ionizers. Additionally, the device should be handled in a static-controlled environment, and personnel should wear ESD-protective clothing and wrist straps.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY62167GE30-45ZXI Overview

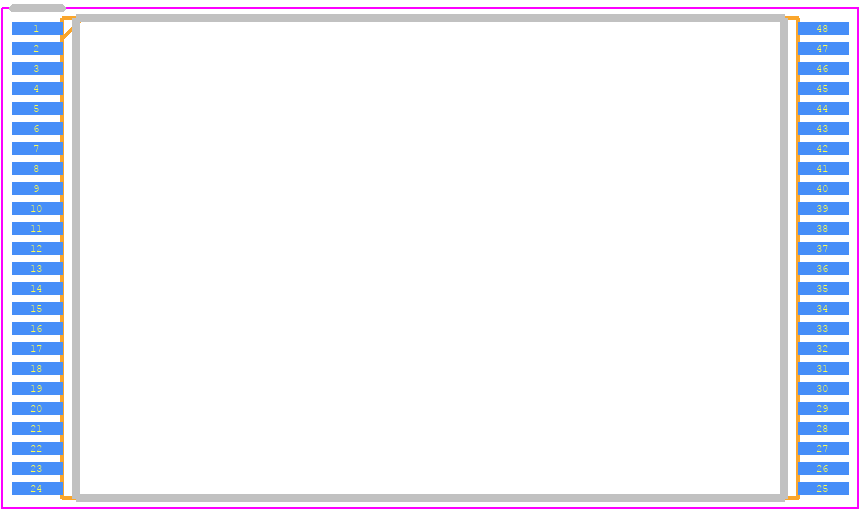

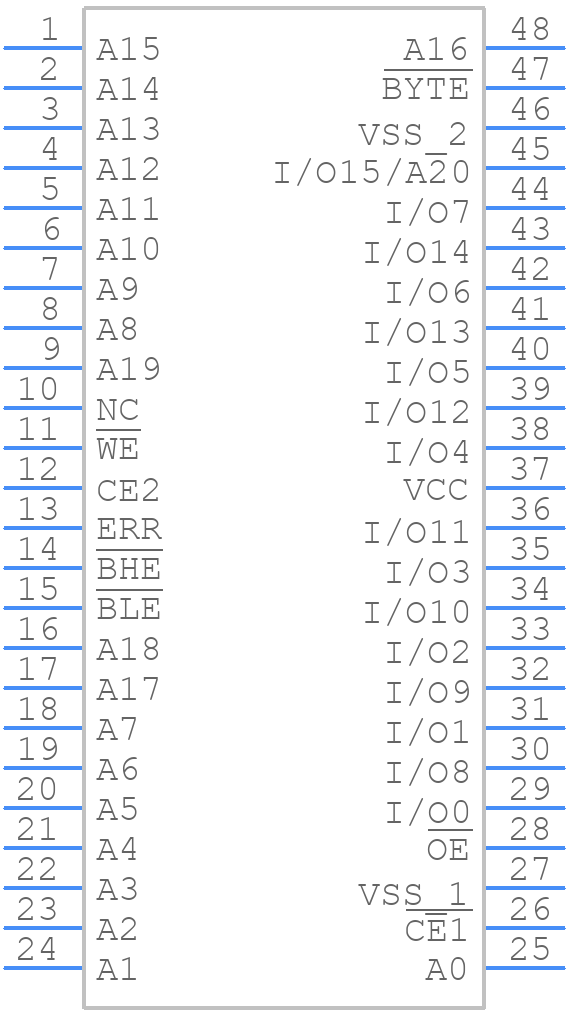

Use the download button to access the CY62167GE30-45ZXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY621,
or try a keyword search, such as SRAMs
