The recommended operating voltage range for CY74FCT157CTQCT is 4.5V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 4.2V to 5.7V for short periods, but prolonged operation outside the recommended range may affect its performance and reliability.
To ensure signal integrity when using CY74FCT157CTQCT in high-speed applications, it's crucial to follow proper PCB design practices, such as using controlled impedance traces, minimizing signal routing distances, and providing adequate decoupling capacitors. Additionally, consider using series termination resistors and/or parallel termination resistors to reduce signal reflections and ringing.
While the CY74FCT157CTQCT is specified for 5V operation, it can be used in a 3.3V system with some limitations. The device's input and output voltage levels will be reduced, and its performance may be affected. It's essential to review the datasheet and perform thorough testing to ensure the device meets your system's requirements.
The maximum clock frequency supported by CY74FCT157CTQCT is 100 MHz, as specified in the datasheet. However, the actual clock frequency limit may be lower depending on the system's noise margin, signal integrity, and other factors. It's recommended to perform thorough testing to determine the maximum clock frequency for your specific application.
When using CY74FCT157CTQCT in a complex system, it's essential to ensure proper power sequencing to prevent damage or malfunction. The device should be powered up and down in a controlled manner, with the VCC supply voltage being applied before the clock signal. It's recommended to review the datasheet and application notes for specific guidance on power sequencing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY74FCT157CTQCT Overview

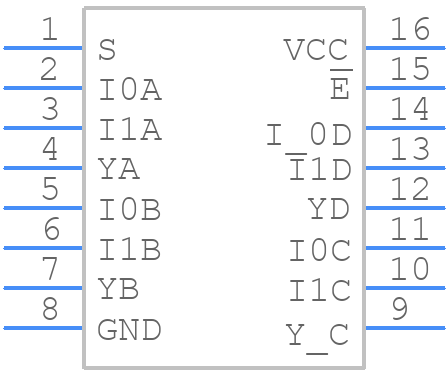

Use the download button to access the CY74FCT157CTQCT schematic symbol, PCB footprint, and 3D model.
