The recommended operating voltage range for CY74FCT157CTSOCT is 4.5V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 4.2V to 5.7V for short periods, but prolonged operation outside the recommended range may affect its performance and reliability.
To ensure signal integrity when using CY74FCT157CTSOCT in high-speed applications, it's crucial to follow proper PCB design practices, such as using controlled impedance traces, minimizing signal routing distances, and providing adequate decoupling capacitors. Additionally, consider using series termination resistors and/or parallel termination resistors to reduce signal reflections and ringing.
While the CY74FCT157CTSOCT is specified for 5V operation, it can be used in a 3.3V system with some limitations. The device's input and output voltage levels will be reduced, and the output current drive capability will be lower. However, the device will still function correctly, but with reduced performance and possibly increased power consumption. It's essential to carefully evaluate the system requirements and ensure that the device meets the necessary specifications.
The maximum clock frequency supported by CY74FCT157CTSOCT is 100 MHz, as specified in the datasheet. However, the actual clock frequency limit may be lower depending on the system's noise margin, signal integrity, and other factors. It's recommended to perform thorough testing and characterization to determine the maximum clock frequency for a specific application.
When using CY74FCT157CTSOCT in a system with multiple power rails, it's essential to ensure proper power sequencing to prevent damage to the device. The VCC pin should be powered up before the input signals, and the input signals should be stable before the clock signal is applied. A power sequencing circuit or a power management IC can be used to ensure proper power-up and power-down sequencing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY74FCT157CTSOCT Overview

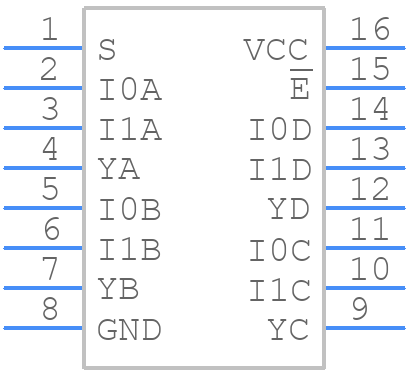

Use the download button to access the CY74FCT157CTSOCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY74F,
or try a keyword search, such as Multiplexer/Demultiplexers
