The recommended operating voltage range for CY74FCT257TQCT is 4.5V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 4.2V to 5.7V for short periods, but this may affect its performance and reliability.
To ensure signal integrity when using CY74FCT257TQCT in high-speed applications, it's crucial to follow proper PCB design practices, such as using controlled impedance traces, minimizing signal routing distances, and using termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
While CY74FCT257TQCT is specified for 5V operation, it can be used in a 3.3V system with some limitations. The device will still function, but its output voltage levels may not meet the required specifications, and its performance may be degraded. It's recommended to use a level translator or a voltage regulator to ensure proper operation.
To handle thermal management for CY74FCT257TQCT in high-power applications, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB thermal design practices. The device's thermal resistance (RθJA) is specified in the datasheet, and you can use this value to estimate the junction temperature and plan your thermal management strategy accordingly.
Yes, CY74FCT257TQCT is a sensitive device and requires proper ESD protection during handling and assembly. Follow standard ESD handling practices, such as using an ESD wrist strap, ESD mat, or ESD bag, and ensure that your assembly process meets the required ESD protection standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY74FCT257TQCT Overview

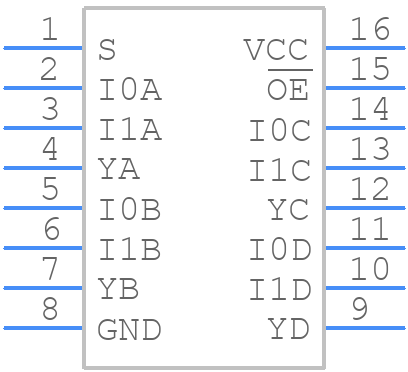

Use the download button to access the CY74FCT257TQCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY74F,
or try a keyword search, such as Multiplexer/Demultiplexers
