CY74FCT540CTQCT - Texas Instruments

Description: Inverting Octal Buffers and Line Drivers with 3-State Outputs

Download CY74FCT540CTQCT Model

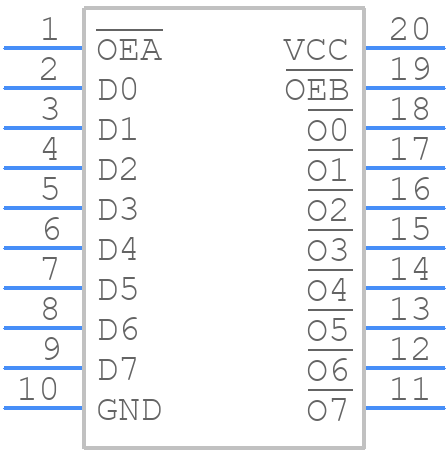

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY74FCT540CTQCT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ (R-PDSO-G20)
click to zoom
3D Models
CY74FCT540CTQCT - Texas Instruments  - 3D model - Small Outline Packages - DBQ (R-PDSO-G20)
click to zoom

CY74FCT540CTQCT Details

  • Manufacturer Part Number:

    CY74FCT540CTQCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QSOP

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    FCT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.064 A

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.5 mA

  • Prop. Delay@Nom-Sup:

    4.1 ns

  • Propagation Delay (tpd):

    4.1 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-PRF-38535

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

CY74FCT540CTQCT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CY74FCT540CTQCT is 4.5V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 4.2V to 5.7V for short periods, but prolonged operation outside the recommended range may affect its performance and reliability.
  • To ensure signal integrity when using CY74FCT540CTQCT in high-speed applications, it's crucial to follow proper PCB design practices, such as using controlled impedance traces, minimizing signal routing distances, and using termination resistors or series resistors to reduce signal reflections. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
  • While the CY74FCT540CTQCT is specified for 5V operation, it can be used in a 3.3V system with some limitations. The device's input and output levels will be compatible with 3.3V logic, but its performance and power consumption may be affected. Consult the datasheet and application notes for more information on using the device in a 3.3V system.
  • The maximum clock frequency supported by CY74FCT540CTQCT is 100 MHz, as specified in the datasheet. However, the actual clock frequency limit may depend on the specific application, PCB design, and signal integrity. It's essential to consult the datasheet and application notes for more information on clock frequency limitations.
  • To handle thermal management for CY74FCT540CTQCT in high-power applications, ensure good airflow around the device, use a heat sink or thermal pad if necessary, and follow proper PCB design practices to minimize thermal resistance. Consult the datasheet and application notes for more information on thermal management and power dissipation.
