The recommended operating voltage range for CY74FCT652ATQCT is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a stable 5V supply voltage for optimal performance.
To ensure signal integrity, it's essential to follow proper PCB design and layout guidelines, such as using controlled impedance traces, minimizing signal routing, and adding termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
While the CY74FCT652ATQCT is specified for 5V operation, it can be used in a 3.3V system with some limitations. However, the device's performance and functionality may be degraded, and the output voltage levels may not meet the required specifications. It's recommended to consult with a Texas Instruments application engineer or consider using a 3.3V-compatible alternative.
To handle thermal management, ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Additionally, follow proper PCB design guidelines, such as using thermal vias and minimizing thermal resistance. Monitor the device's junction temperature and adjust the design as needed to prevent overheating.
The maximum clock frequency supported by CY74FCT652ATQCT is 100 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the system's signal integrity, PCB design, and other factors. It's recommended to consult with a Texas Instruments application engineer or perform simulation and testing to determine the optimal clock frequency for your specific application.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
CY74FCT652ATQCT Overview

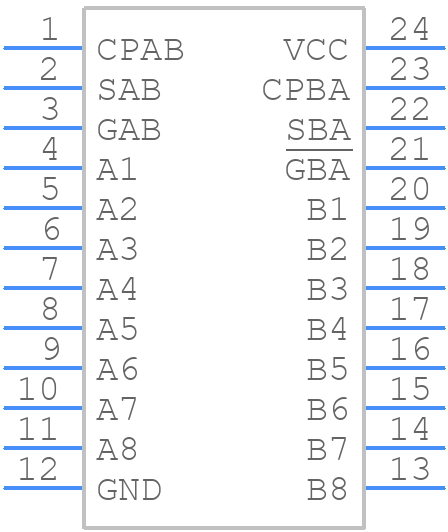

Use the download button to access the CY74FCT652ATQCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY74F,
or try a keyword search, such as Bus Driver/Transceivers
