The CY7C1380KV33-167AXI has an operating temperature range of 0°C to 70°C (commercial temperature range) and -40°C to 85°C (industrial temperature range).
To ensure data integrity, it is recommended to follow a controlled power-up and power-down sequence, as outlined in the datasheet. This includes ramping up the power supply voltage slowly and ensuring that the clock signal is stable before accessing the device.
The recommended termination scheme for the DDR3 interface is to use a 50-ohm termination resistor on the clock lines and a 25-ohm termination resistor on the data lines.
In the event of a write error, the device will assert the ERROR# signal. The system should detect this signal and take corrective action, such as retrying the write operation or initiating a reset sequence.
The CY7C1380KV33-167AXI supports clock frequencies up to 167 MHz.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY7C1380KV33-167AXI Overview

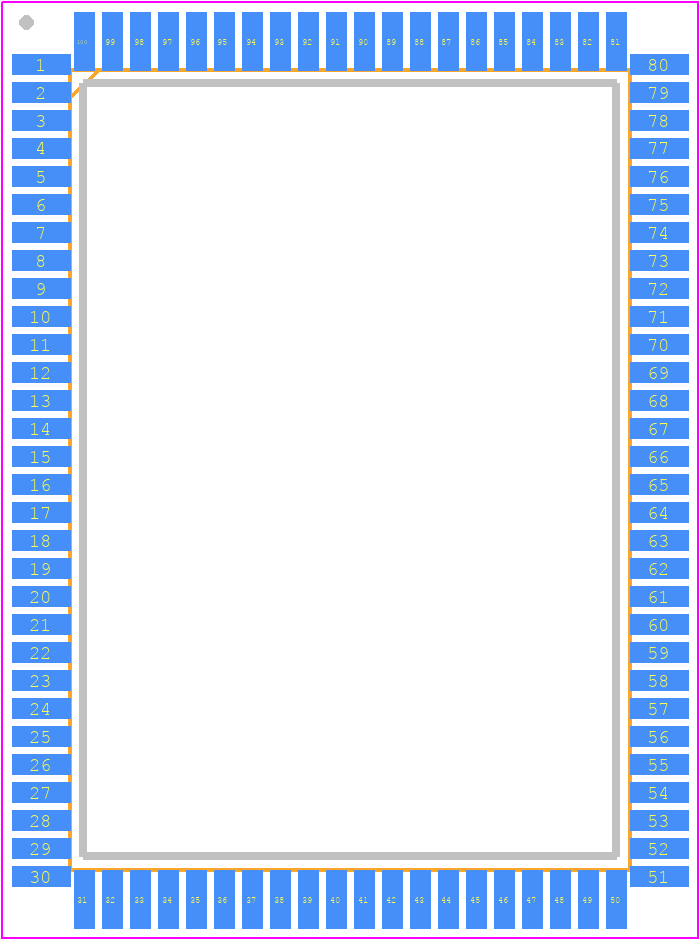

Use the download button to access the CY7C1380KV33-167AXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY7C1,
or try a keyword search, such as SRAMs
