CY8C20534-12PVXIT - Infineon

Description: 8-bit Microcontrollers - MCU 24 I/O 8K Flash 512B RAM 0.6mm

Download CY8C20534-12PVXIT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

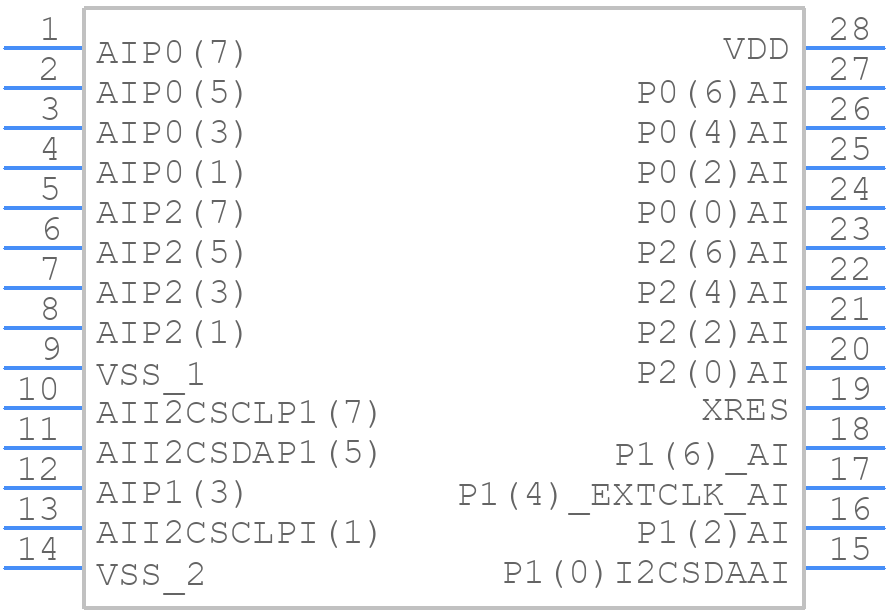

CY8C20534-12PVXIT - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C20534-12PVXIT - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 28-pin SSOP (210 Mils) Package Outline, 51-85079
click to zoom
3D Models
CY8C20534-12PVXIT - Infineon - 3D model - Small Outline Packages - 28-pin SSOP (210 Mils) Package Outline, 51-85079
click to zoom

CY8C20534-12PVXIT Details

  • Manufacturer Part Number:

    CY8C20534-12PVXIT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C20534-12PVXIT Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CY8C20534-12PVXIT is -40°C to +85°C.
  • The CY8C20534-12PVXIT can be programmed using the Cypress PSoC Programmer or the Cypress PSoC Creator Integrated Design Environment (IDE).
  • The maximum clock frequency of the CY8C20534-12PVXIT is 24 MHz.
  • Yes, the CY8C20534-12PVXIT has 16 KB of flash memory.
  • Yes, the CY8C20534-12PVXIT has a low-power mode that can be used to reduce power consumption. The device can operate in a sleep mode with a current consumption of less than 1 μA.
