CY8C21434-24LTXIT - Infineon

Description: CY8C21x34

Download CY8C21434-24LTXIT Model

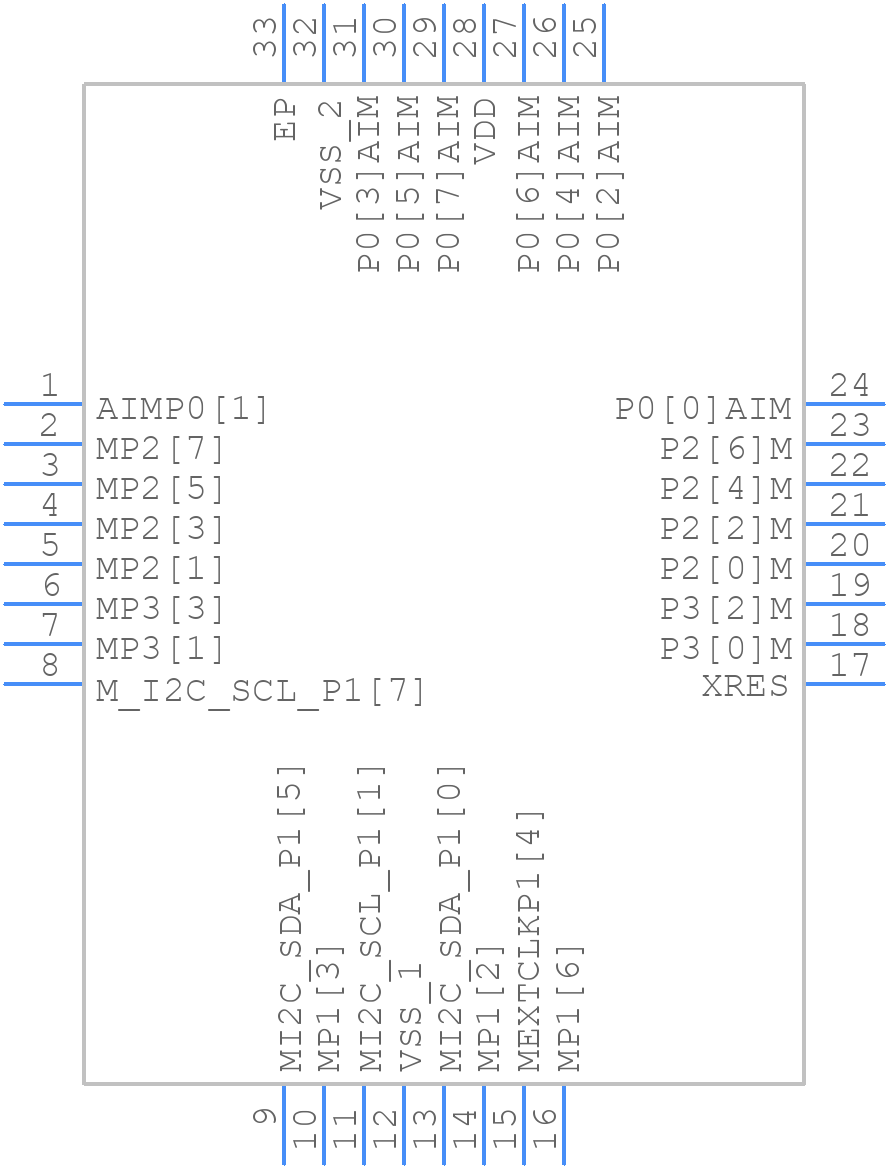

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY8C21434-24LTXIT - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-pin QFN 5 × 5 × 1.0 mm LT32B 3.5 × 3.5 EPAD (Sawn)
click to zoom
3D Models
CY8C21434-24LTXIT - Infineon  - 3D model - Quad Flat No-Lead - 32-pin QFN 5 × 5 × 1.0 mm LT32B 3.5 × 3.5 EPAD (Sawn)
click to zoom

CY8C21434-24LTXIT Details

  • Manufacturer Part Number:

    CY8C21434-24LTXIT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 2.7V AND 3.3V SUPPLY

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C21434-24LTXIT Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the CY8C21434-24LTXIT is 24 MHz.
  • The CY8C21434-24LTXIT has 16 KB of flash memory.
  • The maximum current consumption of the CY8C21434-24LTXIT is 20 mA at 24 MHz.
  • Yes, the CY8C21434-24LTXIT has a 12-bit, 12-channel analog-to-digital converter (ADC).
  • Yes, the CY8C21434-24LTXIT has multiple low-power modes, including Sleep, Hibernate, and Stop modes, to reduce power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
