CY8C3445PVI-094 footprint, schematic symbol and 3D model by Infineon

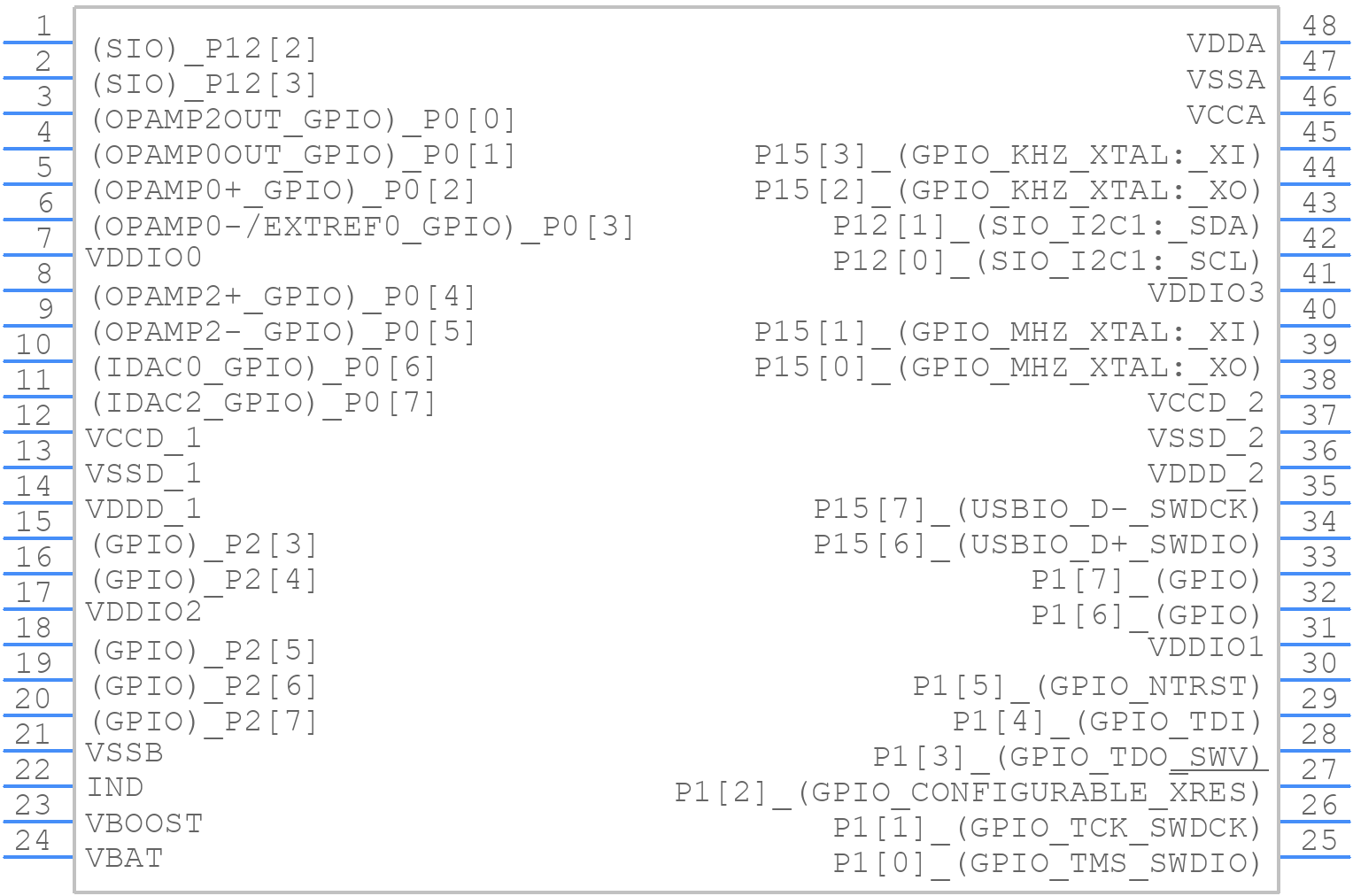

Symbol

click to zoom

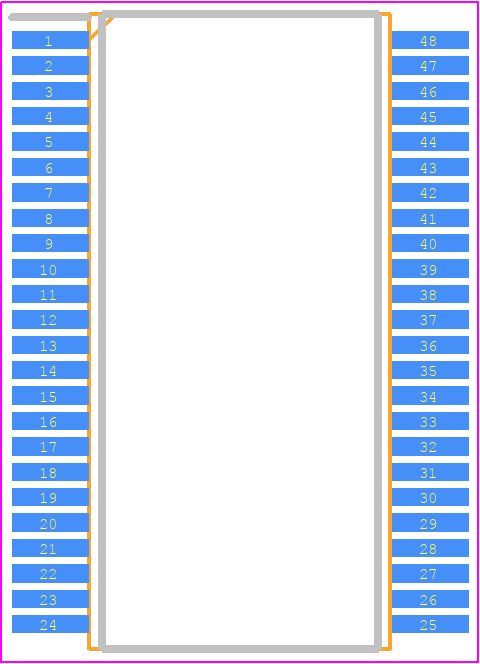

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CY8C3445PVI-094
Part Number CY8C3445PVI-094
Manufacturer Infineon
Pin Count 48
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 48-pin SSOP (300mils)_inches
Released Date Mar 31, 2021
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

CY8C3445PVI-094 Details

Manufacturer Part Number:
CY8C3445PVI-094
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SSOP-48
HTS Code:
8542.31.00.30
Factory Lead Time:
4 Weeks
Manufacturer:
Infineon Technologies AG
YTEOL:
3.15
JESD-30 Code:
R-PDSO-G48
JESD-609 Code:
e4
Length:
15.875 mm
Moisture Sensitivity Level:
3
Number of Terminals:
48
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SSOP48,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
2.794 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
1.71 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
20
Width:
7.5057 mm
uPs/uCs/Peripheral ICs Type:
PROGRAMMABLE SoC

CY8C3445PVI-094 Frequently Asked Questions (FAQs)

The recommended crystal oscillator frequency for the CY8C3445PVI-094 is 32.768 kHz. This frequency is used as the clock source for the internal real-time clock (RTC) and watchdog timer.
The GPIO pins on the CY8C3445PVI-094 can be configured as analog or digital inputs using the Pin Configuration Register (PCR). The PCR register is used to set the pin mode, drive mode, and input buffer mode for each GPIO pin.
The maximum current that can be sourced or sunk by the GPIO pins on the CY8C3445PVI-094 is 25 mA. However, the total current sourced or sunk by all GPIO pins should not exceed 150 mA to ensure reliable operation.
The CY8C3445PVI-094 has several low-power modes, including Sleep, Hibernate, and Stop modes. These modes can be entered by setting the appropriate bits in the Power Mode Register (PMR). The microcontroller can also be woken up from these modes using various interrupts, such as timer interrupts or GPIO interrupts.
The maximum operating temperature range for the CY8C3445PVI-094 is -40°C to +85°C. However, the microcontroller can be operated at temperatures up to 105°C for short periods of time, such as during device startup or shutdown.
