CY8C3866PVI-021 - Infineon

Description: 8-bit Microcontrollers - MCU 64K Flash 67MHz 8051 0.5V to 5.5V

Download CY8C3866PVI-021 Model

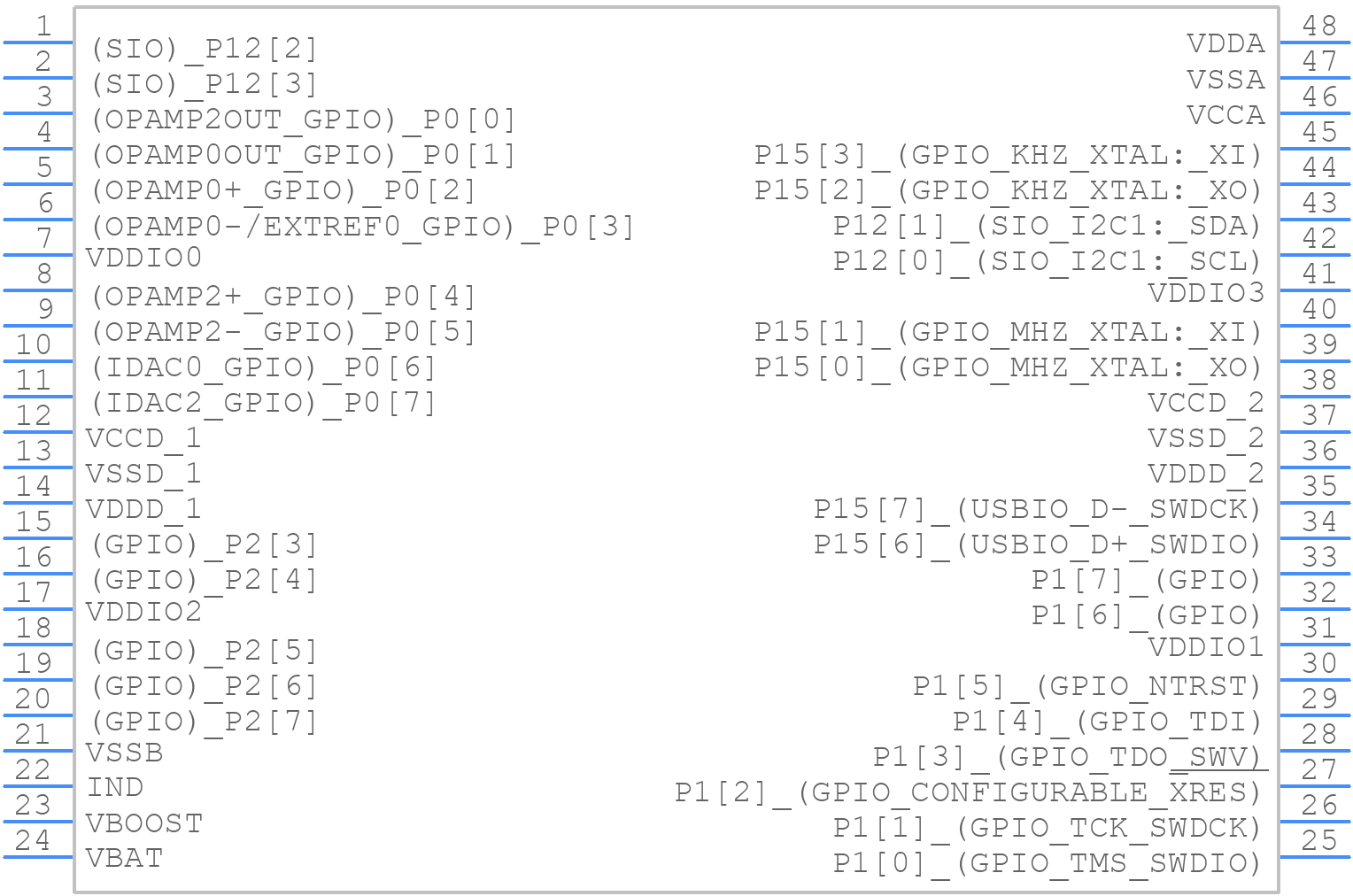

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY8C3866PVI-021 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 48-pin SSOP (300 Mils)
click to zoom
3D Models
CY8C3866PVI-021 - Infineon  - 3D model - Small Outline Packages - 48-pin SSOP (300 Mils)
click to zoom

CY8C3866PVI-021 Details

  • Manufacturer Part Number:

    CY8C3866PVI-021

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    15.875 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP48,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.794 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    7.505 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C3866PVI-021 Frequently Asked Questions (FAQs)

  • The CY8C3866PVI-021 can operate in a temperature range of -40°C to +85°C.
  • The clock source can be configured using the Clock Control Register (CLK_CTRL). The internal oscillator can be used as the clock source, or an external clock source can be used by connecting it to the XTAL pin.
  • The maximum current consumption of the CY8C3866PVI-021 is approximately 20mA at 3.3V and 25°C.
  • The flash memory can be programmed using the In-System Serial Programming (ISSP) interface or the Serial Wire Debug (SWD) interface. The PSoC Programmer software can be used to program the flash memory.
  • The VREF pin is used as a reference voltage for the analog-to-digital converter (ADC). It can be connected to an external voltage reference or left unconnected to use the internal voltage reference.
