CY8C4024AXI-S402 - Infineon

Description: ARM® Cortex®-M0+ PSOC® 4 CY8C4000S Microcontroller IC 32-Bit Single-Core 24MHz 16KB (16K x 8) FLASH 32-TQFP (7x7)

Download CY8C4024AXI-S402 Model

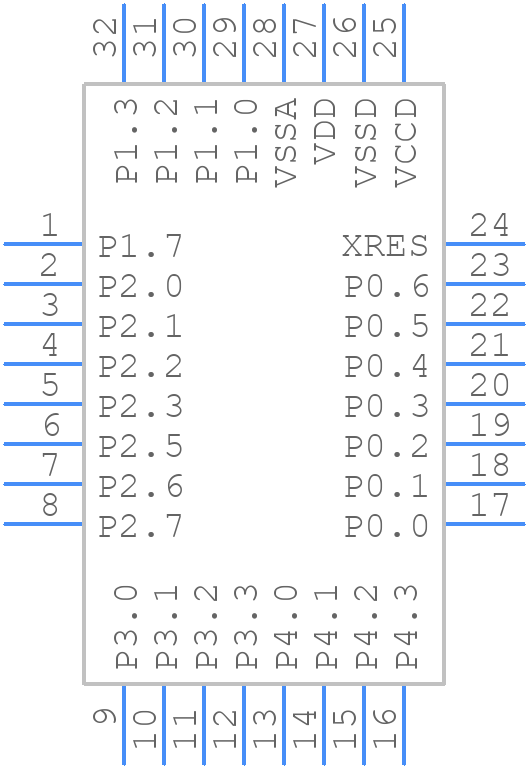

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY8C4024AXI-S402 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - 32-pin TQFP (7 × 7 × 1.4 mm)
click to zoom
3D Models
CY8C4024AXI-S402 - Infineon  - 3D model - Quad Flat Packages - 32-pin TQFP (7 × 7 × 1.4 mm)
click to zoom

CY8C4024AXI-S402 Details

  • Manufacturer Part Number:

    CY8C4024AXI-S402

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4024AXI-S402 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4024AXI-S402 is 24 MHz, 32 kHz, or 32.768 kHz, depending on the application requirements.
  • The GPIO pins can be configured for analog or digital functionality using the Pin Configuration Register (PCR) and the Analog Mux Register (AMUX). Refer to the device's TRM (Technical Reference Manual) for more information.
  • The maximum current that can be sourced or sunk by the GPIO pins is 4 mA, but this can be increased to 8 mA or 12 mA by using the High-Current Output Enable (HCOE) feature.
  • The CY8C4024AXI-S402 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDT_CTRL). The watchdog timer can be set to reset the device or generate an interrupt if the timer expires.
  • The power consumption of the CY8C4024AXI-S402 varies depending on the operating mode. In Active mode, the current consumption is around 2 mA at 3.3 V. In Sleep mode, the current consumption is around 10 μA at 3.3 V. In Hibernate mode, the current consumption is around 1 μA at 3.3 V.
