CY8C4024LQI-S401 - Infineon

Description: 32-bit Microcontrollers - MCU PSoC4

Download CY8C4024LQI-S401 Model

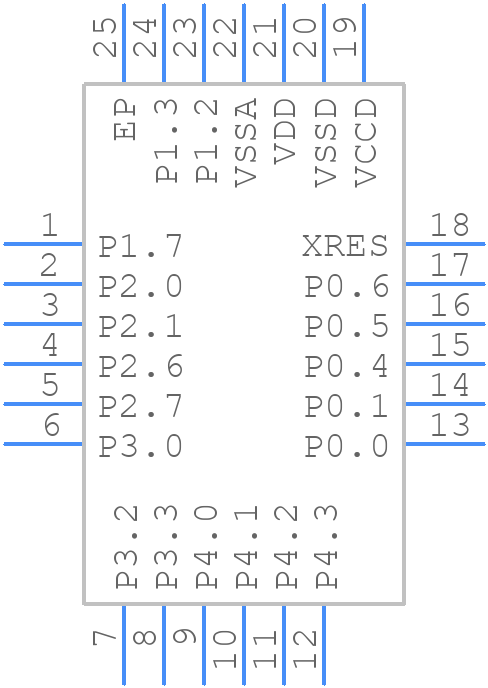

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY8C4024LQI-S401 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-pin QFN ((4 × 4 × 0.60 mm) 2.65 × 2.65 E-Pad (Sawn))
click to zoom
3D Models
CY8C4024LQI-S401 - Infineon  - 3D model - Quad Flat No-Lead - 24-pin QFN ((4 × 4 × 0.60 mm) 2.65 × 2.65 E-Pad (Sawn))
click to zoom

CY8C4024LQI-S401 Details

  • Manufacturer Part Number:

    CY8C4024LQI-S401

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4024LQI-S401 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the CY8C4024LQI-S401 is 24 MHz.
  • The CY8C4024LQI-S401 has 32 KB of flash memory.
  • The operating voltage range of the CY8C4024LQI-S401 is 1.71V to 5.5V.
  • Yes, the CY8C4024LQI-S401 has a built-in USB 2.0 Full-Speed interface.
  • The maximum current consumption of the CY8C4024LQI-S401 is 20 mA at 24 MHz.
