CY8C4025AXI-S412 - Infineon

Description: ARM Microcontrollers - MCU

Download CY8C4025AXI-S412 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

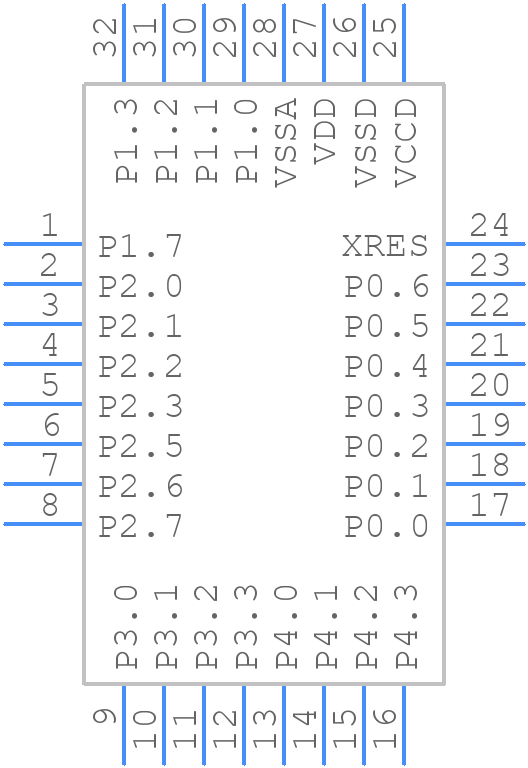

CY8C4025AXI-S412 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4025AXI-S412 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - CY8C4025AXI-S412_
click to zoom
3D Models
CY8C4025AXI-S412 - Infineon - 3D model - Quad Flat Packages - CY8C4025AXI-S412_
click to zoom

CY8C4025AXI-S412 Details

  • Manufacturer Part Number:

    CY8C4025AXI-S412

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4025AXI-S412 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4025AXI-S412 is 24 MHz or 32 kHz, depending on the application requirements.
  • The GPIO pins can be configured for analog or digital functionality using the Pin Configuration Register (PCR) and the Analog Mux Register (AMUX). Refer to the device's TRM (Technical Reference Manual) for more information.
  • The maximum current that can be sourced or sunk by the GPIO pins is 4 mA, but this can be increased to 8 mA or 12 mA by using the High-Current Mode (HCM) feature.
  • The CY8C4025AXI-S412 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDT_CTRL). The watchdog timer can be set to reset the device or generate an interrupt if the timer expires.
  • The power consumption of the CY8C4025AXI-S412 varies depending on the operating mode. In Active mode, the current consumption is around 2 mA at 3.3 V. In Sleep mode, the current consumption is around 10 μA, and in Hibernate mode, it is around 1 μA.
