CY8C4124AZI-S413 - Infineon

Description: ARM® Cortex®-M0+ PSOC® 4 CY8C4100S Microcontroller IC 32-Bit Single-Core 24MHz 16KB (16K x 8) FLASH 48-TQFP (7x7)

Download CY8C4124AZI-S413 Model

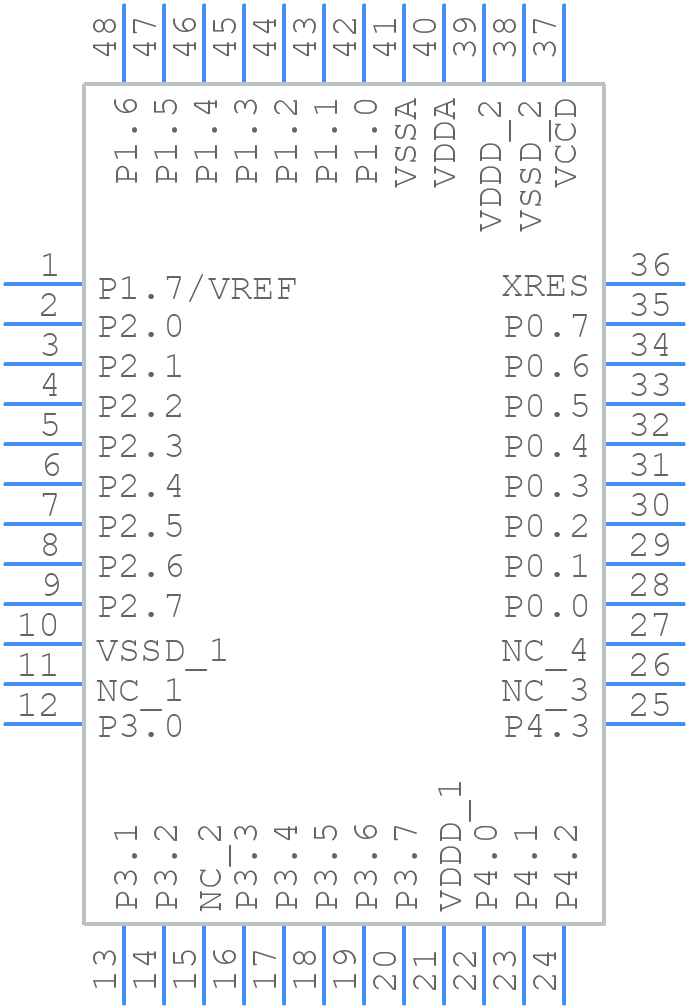

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY8C4124AZI-S413 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-pin TQFP (7 × 7 × 1.4 mm) package outline
click to zoom
3D Models
CY8C4124AZI-S413 - Infineon  - 3D model - Quad Flat Packages - 48-pin TQFP (7 × 7 × 1.4 mm) package outline
click to zoom

CY8C4124AZI-S413 Details

  • Manufacturer Part Number:

    CY8C4124AZI-S413

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4124AZI-S413 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4124AZI-S413 is 24 MHz or 32 kHz, depending on the application requirements.
  • The GPIO pins can be configured for analog or digital functionality using the Pin Configuration Register (PCR) and the Analog Mux Register (AMUX). Refer to the device's TRM (Technical Reference Manual) for more information.
  • The maximum current that can be sourced or sunk by the GPIO pins is 25 mA, but this value can be limited by the device's power consumption and thermal dissipation capabilities.
  • The CY8C4124AZI-S413 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDT_CTRL). The watchdog timer can be used to reset the device in case of a software or hardware fault.
  • The maximum operating temperature range for the CY8C4124AZI-S413 is -40°C to +85°C, but this range can be limited by the specific application and operating conditions.
