The recommended operating voltage range for CY8C4124LQI-S413 is 1.71V to 5.5V.
The clock source for CY8C4124LQI-S413 can be configured using the Clock Divider and the IMO (Internal Main Oscillator) or an external clock source. The configuration is done through the Clock Control Register (CLK_CTRL).
The maximum frequency of the CPU clock for CY8C4124LQI-S413 is 48 MHz.
The CY8C4124LQI-S413 has several low-power modes, including Sleep, Hibernate, and Deep Sleep. These modes can be implemented using the Power Mode Control Register (PM_CTRL) and the Sleep Timer (SLEEP_TIMER).
The maximum current consumption of CY8C4124LQI-S413 depends on the operating frequency and voltage. At 48 MHz and 3.3V, the maximum current consumption is approximately 20 mA.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY8C4124LQI-S413 Overview

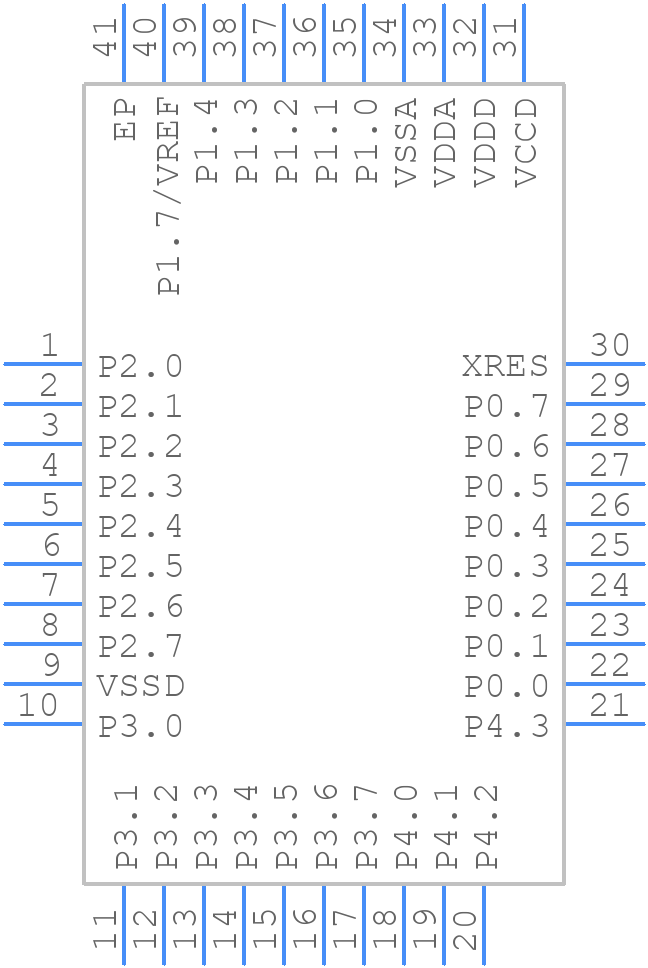

Use the download button to access the CY8C4124LQI-S413 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
