The recommended crystal oscillator frequency for the CY8C4125LQS-S423 is 32.768 kHz. This frequency is used as the clock source for the internal real-time clock (RTC) and watchdog timer.
The GPIO pins on the CY8C4125LQS-S423 can be configured as analog or digital inputs using the Pin Configuration Register (PCR). The PCR register is used to set the pin mode, drive mode, and input buffer mode for each GPIO pin.
The maximum current that can be sourced or sunk by the GPIO pins on the CY8C4125LQS-S423 is 25 mA. However, the total current sourced or sunk by all GPIO pins should not exceed 150 mA to ensure reliable operation.
The internal voltage regulator on the CY8C4125LQS-S423 can be used to power external components by connecting the VREG pin to the external component's power pin. The internal voltage regulator is enabled by setting the VREG_EN bit in the System Control Register (SCR).
The minimum and maximum operating temperature range for the CY8C4125LQS-S423 is -40°C to 85°C. Operating the microcontroller outside this temperature range may affect its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY8C4125LQS-S423 Overview

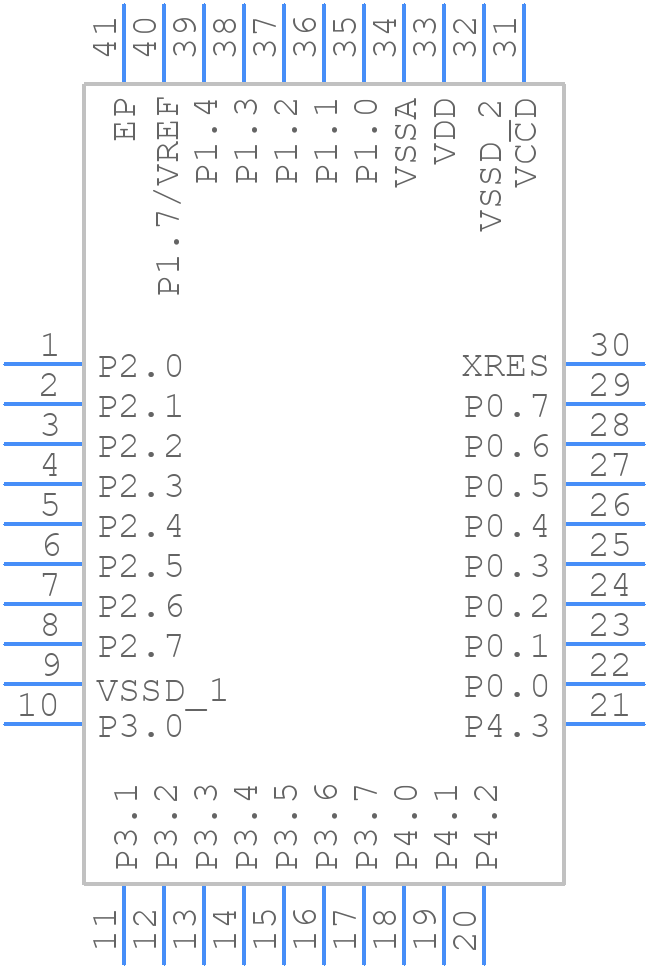

Use the download button to access the CY8C4125LQS-S423 schematic symbol, PCB footprint, and 3D model.
