CY8C4146FNI-S433T - Infineon

Description: ARM® Cortex®-M0+ PSOC® 4 CY8C4100S Microcontroller IC 32-Bit Single-Core 48MHz 64KB (64K x 8) FLASH 35-WLCSP (2.11x2.6)

Download CY8C4146FNI-S433T Model

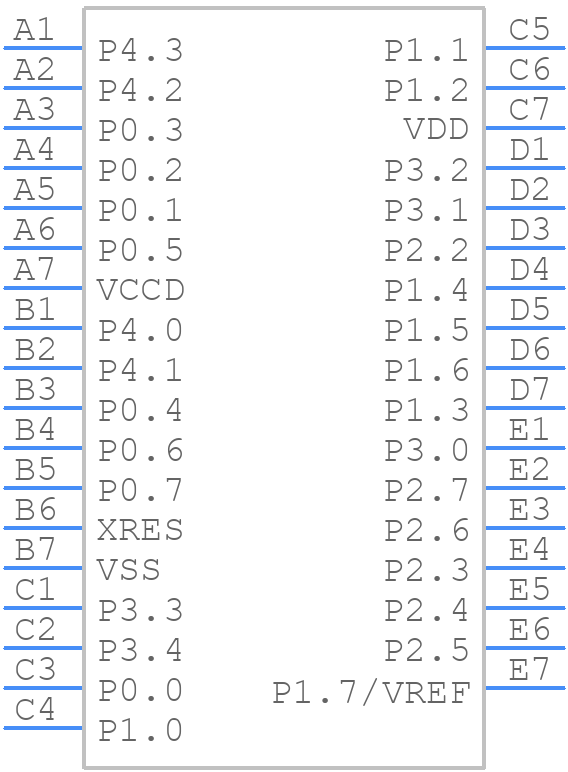

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CY8C4146FNI-S433T - Infineon PCB footprint - BGA - BGA - SG-XFWLB-35
click to zoom
3D Models
CY8C4146FNI-S433T - Infineon  - 3D model - BGA - SG-XFWLB-35
click to zoom

CY8C4146FNI-S433T Details

  • Manufacturer Part Number:

    CY8C4146FNI-S433T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • JESD-30 Code:

    R-PBGA-B35

  • JESD-609 Code:

    e1

  • Length:

    2.582 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA35,5X7,14

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.482 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.097 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4146FNI-S433T Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4146FNI-S433T is 32.768 kHz, which is a standard frequency for most microcontrollers.
  • The internal voltage regulator of the CY8C4146FNI-S433T can be configured using the VREG register. The VREG register allows you to set the voltage regulator mode, enable or disable the regulator, and configure the regulator's output voltage.
  • The maximum current that can be sourced or sunk by the GPIO pins of the CY8C4146FNI-S433T is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation.
  • The CY8C4146FNI-S433T has a built-in watchdog timer that can be enabled and configured using the WDT register. The watchdog timer can be set to timeout after a specific period, and it can be reset using the WDT reset register.
  • The maximum operating temperature range for the CY8C4146FNI-S433T is -40°C to +85°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to +70°C for optimal performance and reliability.
