CY8C4146LQI-S423 - Infineon

Description: PSoC 4100S Device Family

Download CY8C4146LQI-S423 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

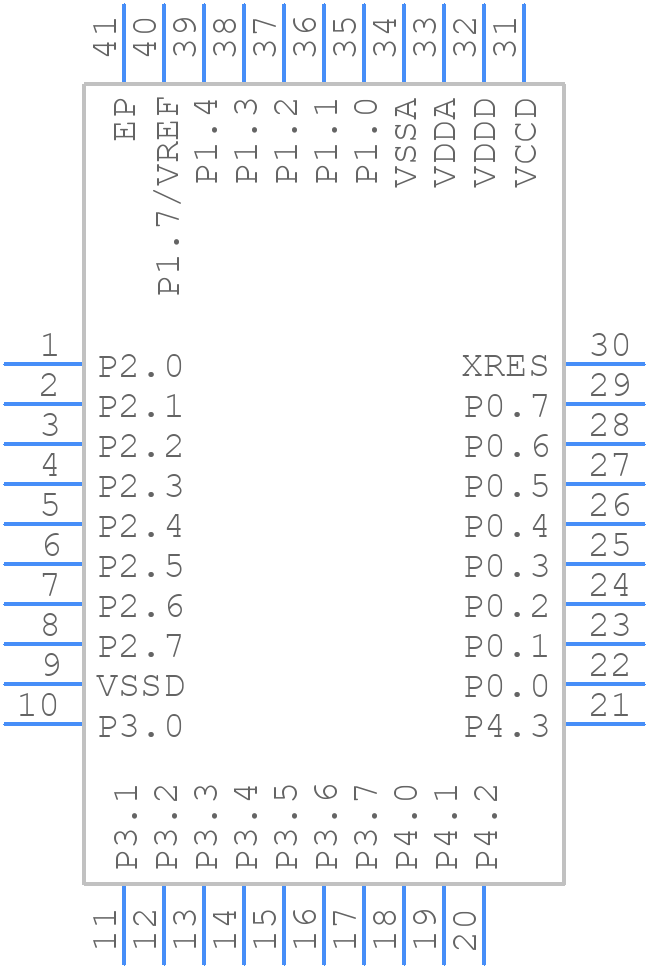

Symbol
CY8C4146LQI-S423 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4146LQI-S423 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-QFN
click to zoom
3D Models
CY8C4146LQI-S423 - Infineon - 3D model - Quad Flat No-Lead - 40-QFN
click to zoom

CY8C4146LQI-S423 Details

  • Manufacturer Part Number:

    CY8C4146LQI-S423

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4146LQI-S423 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4146LQI-S423 is between 32.768 kHz and 24 MHz, with a typical value of 12 MHz.
  • The internal voltage regulator is enabled by default. To configure it, you need to set the VREG bit in the SYSCLK register to 1. You can also adjust the voltage regulator output voltage by setting the VREG_LVL bits in the SYSCLK register.
  • The maximum current that can be sourced or sunk by the GPIO pins is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation.
  • To use the CapSense feature, you need to configure the CapSense blocks and sensors using the CapSense API provided in the PSoC Creator software. You also need to calibrate the sensors using the CapSense tuning tool.
  • The maximum operating temperature range for the CY8C4146LQI-S423 is -40°C to +85°C. However, the device can be operated at a reduced temperature range of -20°C to +70°C for industrial applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C4146LQI-S423 Overview

Use the download button to access the CY8C4146LQI-S423 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
