CY8C4146LQI-S432 - Infineon

Description: ARM® Cortex®-M0+ PSOC™ 4 CY8C4100S Microcontroller IC 32-Bit 48MHz 64KB (64K x 8) FLASH 32-QFN (5x5)

Download CY8C4146LQI-S432 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

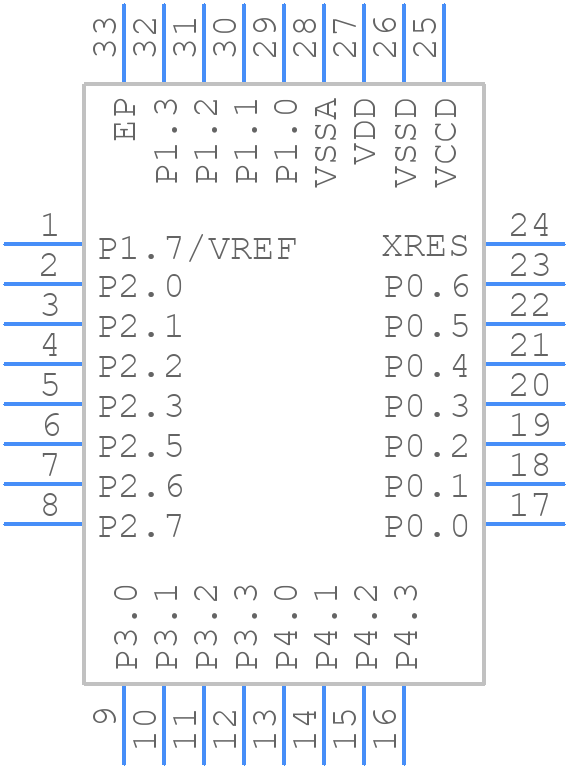

CY8C4146LQI-S432 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4146LQI-S432 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PG-VQFN-32
click to zoom
3D Models
CY8C4146LQI-S432 - Infineon - 3D model - Quad Flat No-Lead - PG-VQFN-32
click to zoom

CY8C4146LQI-S432 Details

  • Manufacturer Part Number:

    CY8C4146LQI-S432

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4146LQI-S432 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4146LQI-S432 is 32.768 kHz, which is a standard frequency for most microcontrollers.
  • The internal clock source can be configured using the Clock Control Register (CLK_CR). The register allows you to select the clock source, configure the clock divider, and enable or disable the clock.
  • The maximum operating temperature range for the CY8C4146LQI-S432 is -40°C to +85°C, making it suitable for a wide range of industrial and commercial applications.
  • The CY8C4146LQI-S432 has several low-power modes, including Sleep, Hibernate, and Stop modes. These modes can be implemented using the Power Management Register (PMR) and the System Control Register (SCR).
  • The maximum current consumption of the CY8C4146LQI-S432 is approximately 20 mA at 3.3V and 25°C, depending on the operating frequency and mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C4146LQI-S432 Overview

Use the download button to access the CY8C4146LQI-S432 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
