CY8C4147AXI-S475 - Infineon

Description: Cypress Semiconductor CY8C4147AXI-S475, 32bit ARM Cortex M0 Microcontroller, 48MHz, 128 kB Flash, 64-Pin TQFP

Download CY8C4147AXI-S475 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CY8C4147AXI-S475 - Infineon - PCB symbol
click to zoom
PCB Footprints

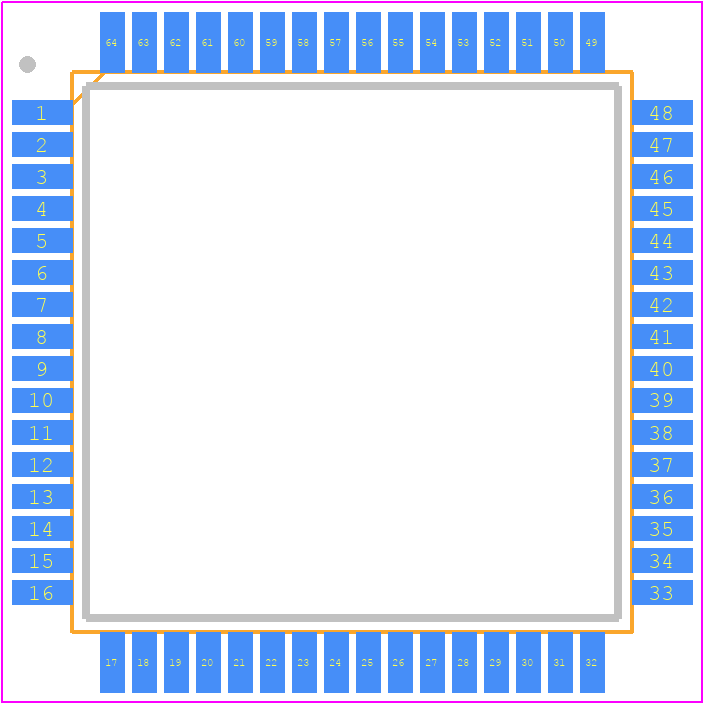

CY8C4147AXI-S475 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - 64-pin TQFP Package (0.8-mm Pitch) Outline
click to zoom
3D Models
CY8C4147AXI-S475 - Infineon - 3D model - Quad Flat Packages - 64-pin TQFP Package (0.8-mm Pitch) Outline
click to zoom

CY8C4147AXI-S475 Details

  • Manufacturer Part Number:

    CY8C4147AXI-S475

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP64,.63SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4147AXI-S475 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4147AXI-S475 is 24 MHz, 32 kHz, or 32.768 kHz, depending on the application requirements.
  • The internal voltage regulator can be configured using the VREG register in the System Configuration block. The VREG register allows you to select the voltage regulator mode, output voltage, and power mode.
  • The maximum current that can be sourced or sunk by the GPIO pins is 25 mA, but it is recommended to limit the current to 10 mA to ensure reliable operation.
  • The CY8C4147AXI-S475 has a built-in watchdog timer that can be enabled and configured using the WDT register in the System Configuration block. The watchdog timer can be set to timeout after a specified period of inactivity.
  • The maximum operating temperature range for the CY8C4147AXI-S475 is -40°C to +85°C, but it can be extended to -40°C to +105°C with some limitations on the clock frequency and voltage supply.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C4147AXI-S475 Overview

Use the download button to access the CY8C4147AXI-S475 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
