CY8C4147AZI-S443 - Infineon

Description: MCU 32-bit ARM Cortex M0+ RISC 128KB Flash 3.3V/5V 48-Pin TQFP Tray

Download CY8C4147AZI-S443 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

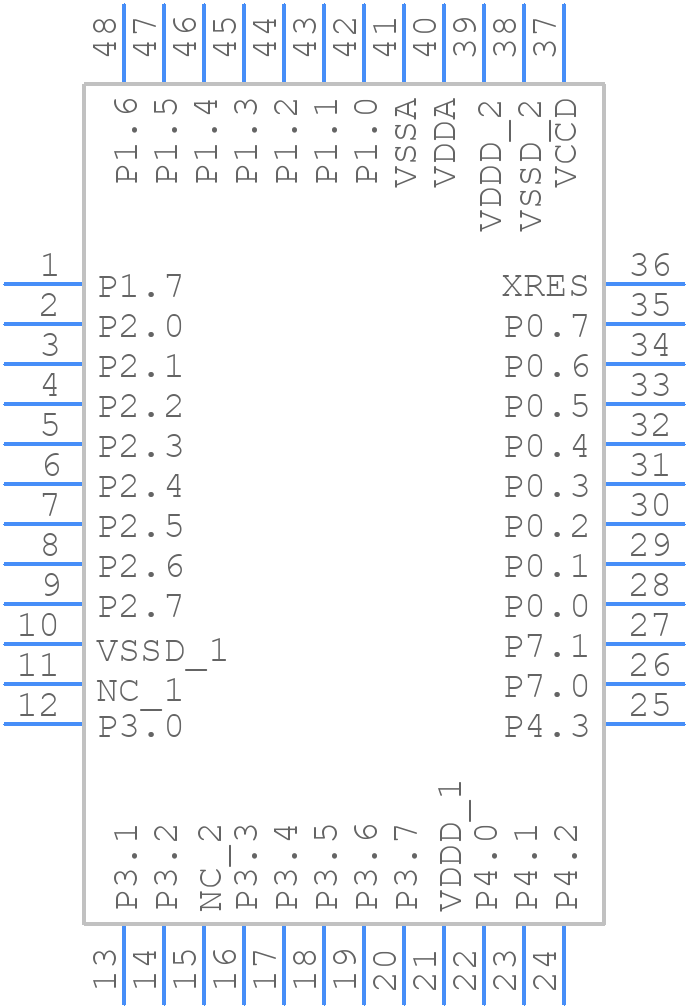

CY8C4147AZI-S443 - Infineon - PCB symbol
click to zoom
PCB Footprints

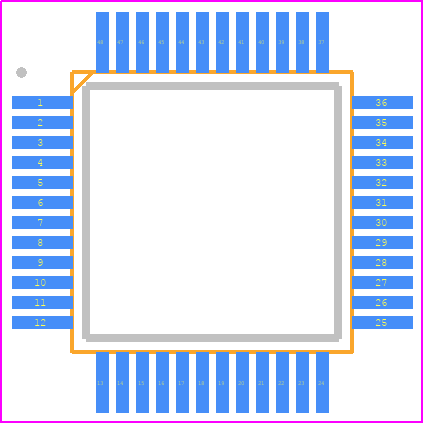

CY8C4147AZI-S443 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-pin TQFP (7 × 7 × 1.4 mm) A48 Package Outline
click to zoom
3D Models
CY8C4147AZI-S443 - Infineon - 3D model - Quad Flat Packages - 48-pin TQFP (7 × 7 × 1.4 mm) A48 Package Outline
click to zoom

CY8C4147AZI-S443 Details

  • Manufacturer Part Number:

    CY8C4147AZI-S443

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4147AZI-S443 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4147AZI-S443 is 24 MHz, 32 kHz, or 32.768 kHz, depending on the application requirements.
  • The internal voltage regulator can be configured using the VREG register. The VREG register allows you to select the voltage regulator mode, enable or disable the regulator, and set the regulator voltage output.
  • The maximum current that can be sourced or sunk by the GPIO pins is 25 mA. However, it is recommended to limit the current to 10 mA or less to ensure reliable operation.
  • The CY8C4147AZI-S443 has a built-in watchdog timer that can be enabled and configured using the WDT register. The watchdog timer can be set to timeout after a specified period, and can be reset using the WDT reset register.
  • The maximum operating temperature range for the CY8C4147AZI-S443 is -40°C to +85°C. However, it is recommended to operate the device within the recommended temperature range of -20°C to +70°C for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C4147AZI-S443 Overview

Use the download button to access the CY8C4147AZI-S443 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4, or try a keyword search, such as Multifunction Peripherals
