CY8C4147LQS-S263T - Infineon

Description: Automotive Electronics Council (AEC) AEC-Q100 Qualified • 32-bit MCU subsystem - 48-MHz Arm® Cortex®-M0+ CPU - Up to 128 KB of flash with Read Accelerator - Up to 16 KB of SRAM - 8-channel DMA engine • Programmable analog - Two opamps with reconfigurable high-drive external and high-bandwidth internal drive and comparator modes and ADC input buffering capability. Opamps can operate in Deep Sleep low-power mode. - 12-bit 1-Msps SAR ADC with differential and single-ended modes, and channel sequencer

Download CY8C4147LQS-S263T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

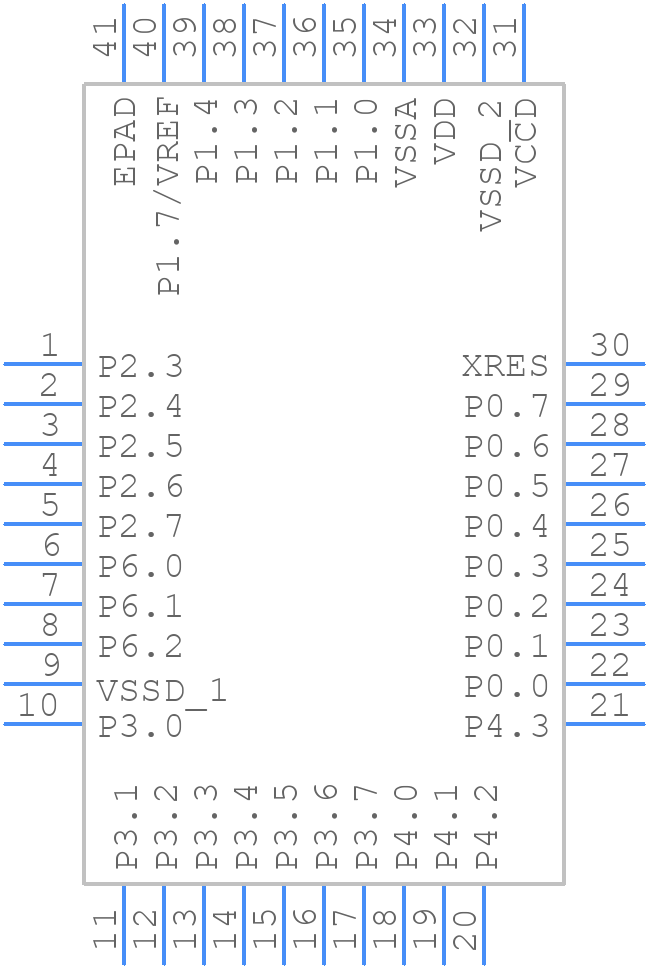

CY8C4147LQS-S263T - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4147LQS-S263T - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-qfn
click to zoom
3D Models
CY8C4147LQS-S263T - Infineon - 3D model - Quad Flat No-Lead - 40-qfn
click to zoom

CY8C4147LQS-S263T Details

  • Manufacturer Part Number:

    CY8C4147LQS-S263T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4147LQS-S263T Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4147LQS-S263T is 32.768 kHz, which is a standard frequency for most microcontrollers.
  • The GPIO pins on the CY8C4147LQS-S263T can be configured for analog or digital functionality using the PSoC Creator Integrated Design Environment (IDE) or by writing code to configure the pin registers directly.
  • The maximum current that can be sourced or sunk by the GPIO pins on the CY8C4147LQS-S263T is 25 mA, but this can be limited by the power supply and other factors, so it's recommended to check the datasheet and application notes for specific guidance.
  • The CY8C4147LQS-S263T has several low-power modes, including Sleep, Hibernate, and Deep Sleep, which can be implemented using the PSoC Creator IDE or by writing code to configure the power management registers. The specific implementation will depend on the application requirements and constraints.
  • The maximum operating temperature range for the CY8C4147LQS-S263T is -40°C to +85°C, but this can be limited by the specific application and operating conditions, so it's recommended to check the datasheet and application notes for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C4147LQS-S263T Overview

Use the download button to access the CY8C4147LQS-S263T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
