- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CY8C4246AXI-M443
- Part Number CY8C4246AXI-M443
- Manufacturer Infineon
- Pin Count 44
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - 44-pin TQFP Package Outline
- Released Date Jan 29, 2020
- Last Modified Date Jan 25, 2024 9:25 PM UTC
- Pinout / Pin List Click Here (Member Only)
CY8C4246AXI-M443 Details
-
Manufacturer Part Number:
CY8C4246AXI-M443
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
TQFP-44
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
4
-
JESD-30 Code:
S-PQFP-G44
-
JESD-609 Code:
e4
-
Length:
10 mm
-
Moisture Sensitivity Level:
3
CY8C4246AXI-M443 Frequently Asked Questions (FAQs)
-
The recommended crystal oscillator frequency for the CY8C4246AXI-M443 is 32.768 kHz. This frequency is used as the clock source for the internal real-time clock (RTC) and watchdog timer.
-
The CY8C4246AXI-M443 has a USB 2.0 Full-Speed interface that can be configured using the USBFS component in the PSoC Creator IDE. The USB interface can be configured as a device, host, or OTG (on-the-go) device. Refer to the PSoC Creator documentation and the CY8C4246AXI-M443 datasheet for more information.
-
The CY8C4246AXI-M443 has an operating temperature range of -40°C to +85°C. However, the device can be operated at temperatures up to +105°C with reduced performance and reliability.
-
The CY8C4246AXI-M443 has a secure boot feature that can be implemented using the PSoC Creator IDE. The secure boot feature uses a combination of cryptographic algorithms and secure key storage to ensure that only authorized firmware can be executed on the device. Refer to the PSoC Creator documentation and the CY8C4246AXI-M443 datasheet for more information.
-
The CY8C4246AXI-M443 has 256 KB of flash memory, of which up to 248 KB can be used for program storage. The remaining 8 KB is reserved for the boot loader and other system functions.
Trust Checks
Expert Contribution
System Verified
Community Approved
CY8C4246AXI-M443 Overview

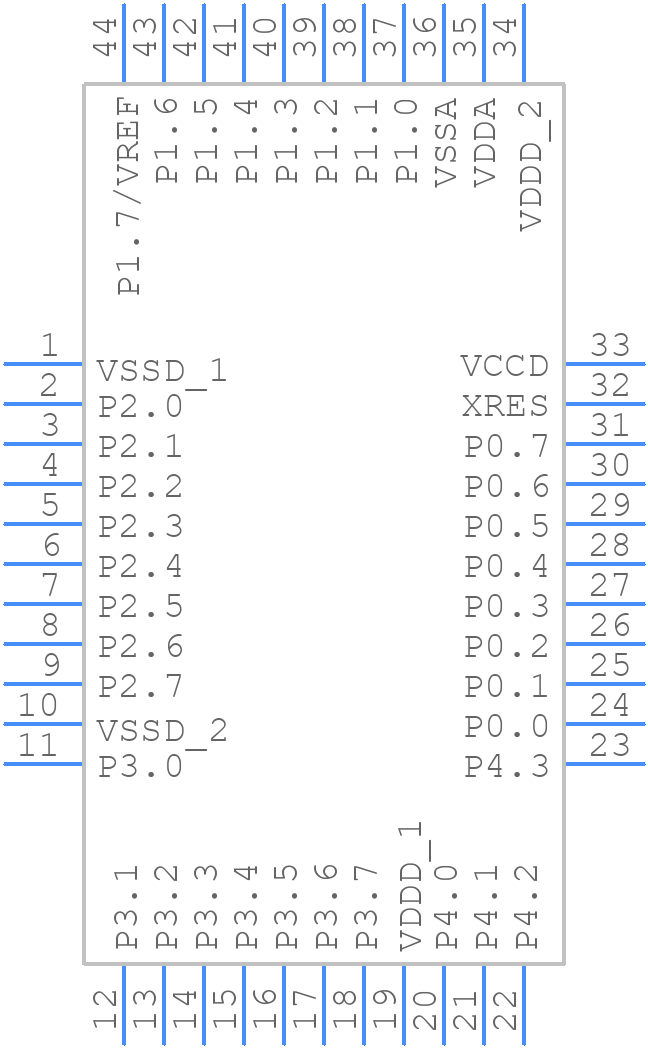

Use the download button to access the CY8C4246AXI-M443 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C4,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
