CY8C4745LQI-S411 - Infineon

Description: Cypress Semiconductor CY8C4745LQI-S411 Microcontroller

Download CY8C4745LQI-S411 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

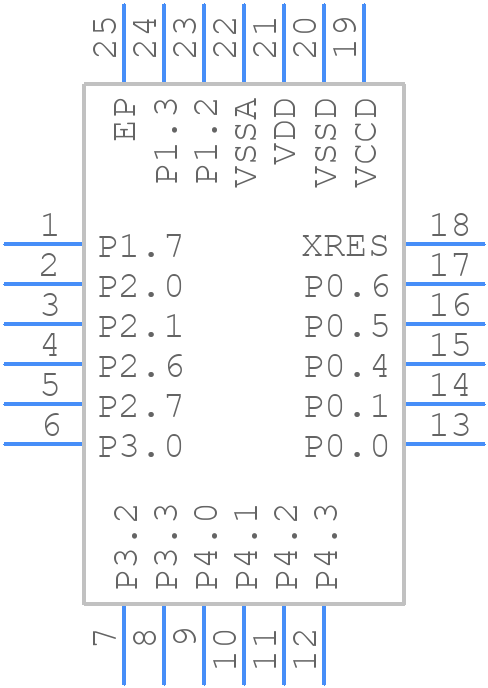

CY8C4745LQI-S411 - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C4745LQI-S411 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-pin QFN 1
click to zoom
3D Models
CY8C4745LQI-S411 - Infineon - 3D model - Quad Flat No-Lead - 24-pin QFN 1
click to zoom

CY8C4745LQI-S411 Details

  • Manufacturer Part Number:

    CY8C4745LQI-S411

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Terminal Finish:

    Pure Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    PROGRAMMABLE SoC

CY8C4745LQI-S411 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the CY8C4745LQI-S411 is 32.768 kHz, which is a standard frequency for most microcontrollers.
  • The internal clock source can be configured using the Clock Divider Register (CLKDIV) and the IMO (Internal Main Oscillator) trim registers. Refer to the device's TRM (Technical Reference Manual) for detailed information.
  • The CY8C4745LQI-S411 has an operating temperature range of -40°C to +85°C, making it suitable for most industrial and commercial applications.
  • No, the internal voltage regulator is only intended to power the internal circuitry of the microcontroller. It is not recommended to use it to power external components.
  • The CY8C4745LQI-S411 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDTCTL). Refer to the device's TRM for detailed information.
