- Part Number CY8C4A45PVI-481
- Manufacturer Infineon
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 28-Pin SSOP Package Outline
- Released Date Jan 19, 2021
- Last Modified Date Jan 25, 2024 9:25 PM UTC
- Pinout / Pin List Click Here (Member Only)
CY8C4A45PVI-481 Details
-
Manufacturer Part Number:
CY8C4A45PVI-481
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
7
-
JESD-609 Code:
e4
-
Moisture Sensitivity Level:
3
-
Temperature Grade:
INDUSTRIAL
-
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
-
uPs/uCs/Peripheral ICs Type:
PROGRAMMABLE SoC
CY8C4A45PVI-481 Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the CY8C4A45PVI-481 is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
-
The CY8C4A45PVI-481 has multiple clock sources, including an internal oscillator, external crystal oscillator, and external clock source. To configure the clock source, you need to set the appropriate registers and configuration bits, as described in the datasheet and application notes.
-
The maximum current consumption of the CY8C4A45PVI-481 depends on the operating frequency, voltage, and peripheral usage. According to the datasheet, the maximum current consumption is around 20mA at 48MHz and 3.3V, but this can vary depending on the specific application and usage.
-
The CY8C4A45PVI-481 has multiple low-power modes, including Sleep, Hibernate, and Deep Sleep. To implement these modes, you need to configure the power management registers and use the appropriate APIs and libraries provided by Infineon. You can also refer to the application notes and example code for guidance.
-
The maximum frequency of the CY8C4A45PVI-481 is 48MHz, as specified in the datasheet. However, the actual operating frequency may be lower depending on the clock source, voltage, and temperature.
Trust Checks
Community Provided
System Verified
Community Approved
CY8C4A45PVI-481 Overview

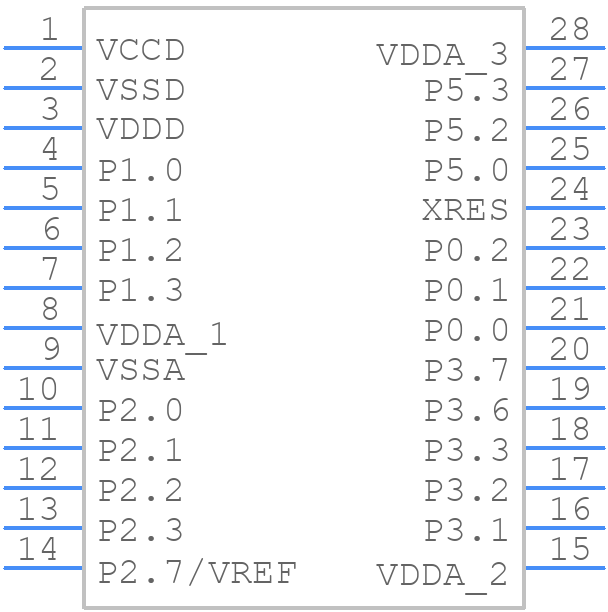

Use the download button to access the CY8C4A45PVI-481 schematic symbol, PCB footprint, and 3D model.
