Infineon provides a recommended PCB layout guide in the CY8C9540A-24PVXI application note (AN218165) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The CY8C9540A-24PVXI has a built-in capacitive touch sensing module. To implement capacitive touch sensing, refer to the PSoC 4 Capacitive Touch Sensing Design Guide (AN85951) which provides detailed information on sensor design, tuning, and firmware implementation.
The CY8C9540A-24PVXI has an operating temperature range of -40°C to +85°C, as specified in the datasheet. However, it's essential to consider the thermal management and PCB design to ensure reliable operation within this range.
Yes, the CY8C9540A-24PVXI is suitable for battery-powered applications due to its low power consumption. The device has multiple power modes, including sleep and hibernate modes, to minimize power consumption. Additionally, the device can be powered from a single-cell battery with an internal voltage regulator.
The CY8C9540A-24PVXI can be programmed and debugged using the PSoC Creator Integrated Design Environment (IDE) or the PSoC Programmer software. The device also supports debugging through the Serial Wire Debug (SWD) interface.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY8C9540A-24PVXI Overview

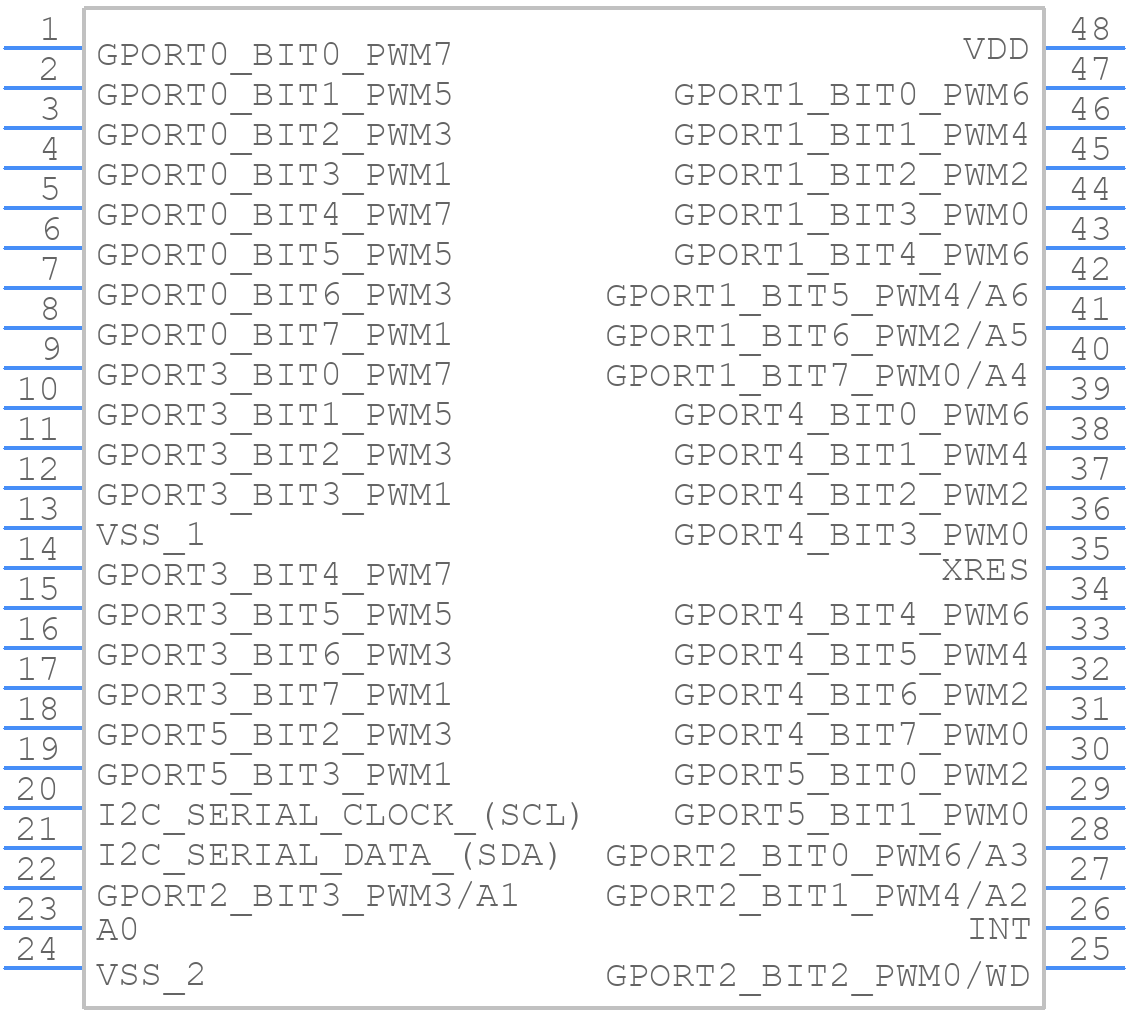

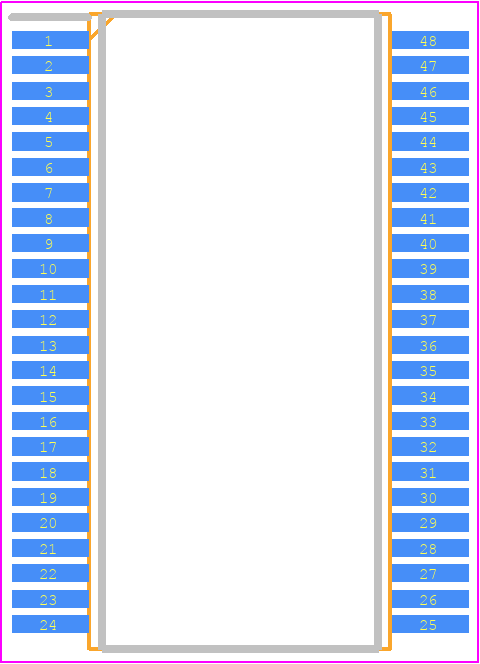

Use the download button to access the CY8C9540A-24PVXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C9,
or try a keyword search, such as Parallel IO Ports
