CY8C9540A-24PVXIT footprint, schematic symbol and 3D model by Infineon

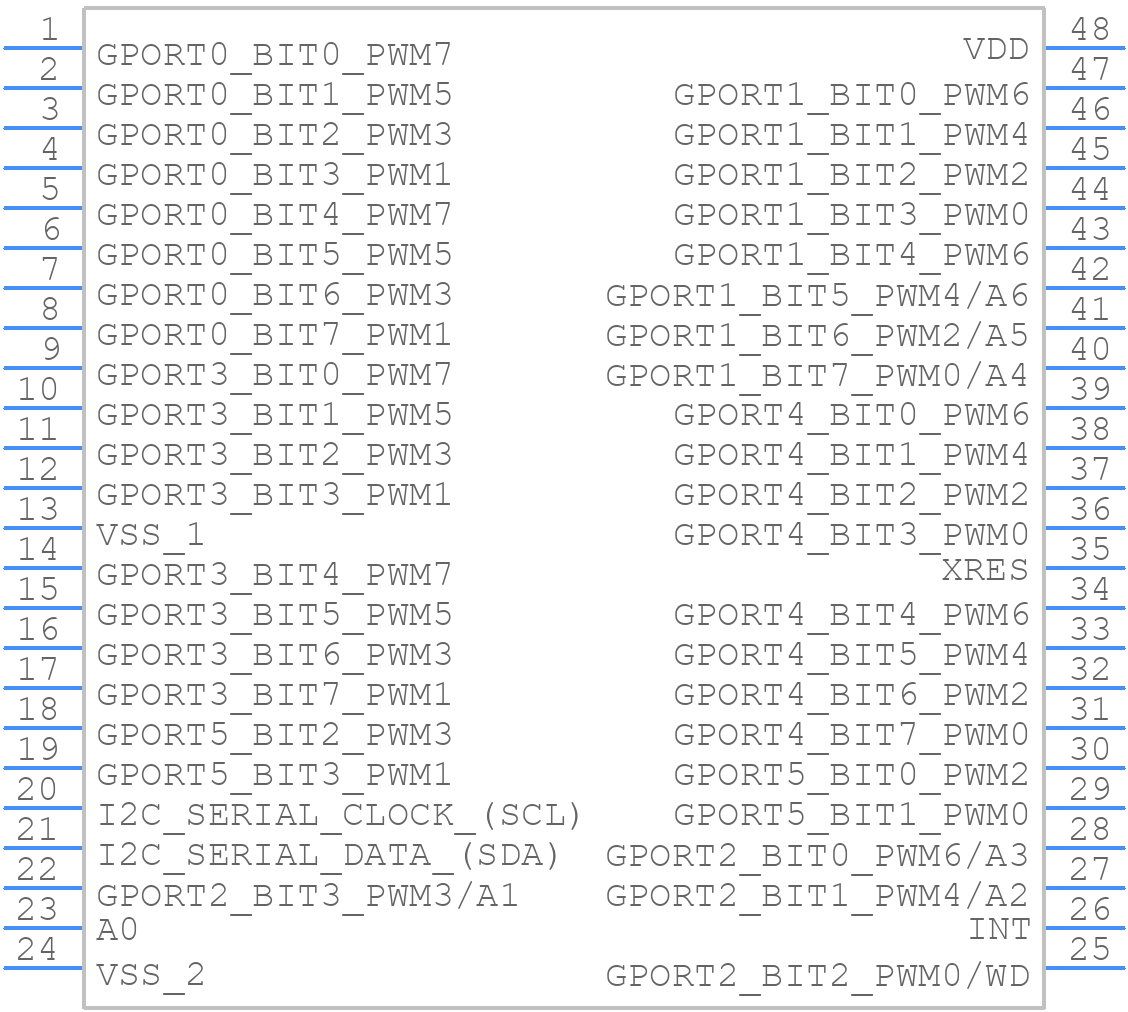

Symbol

click to zoom

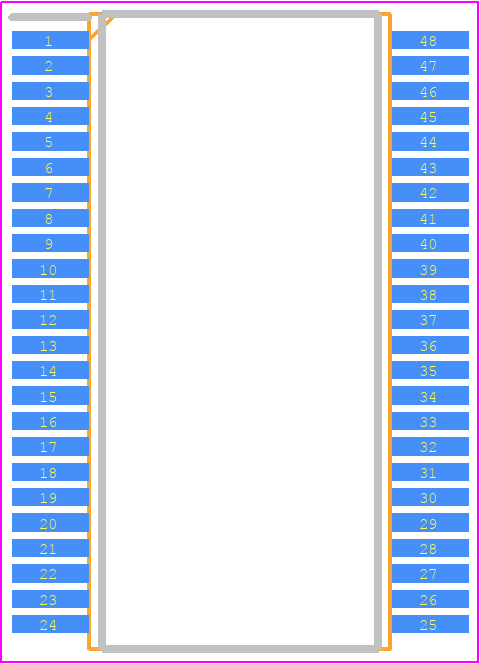

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CY8C9540A-24PVXIT
Part Number CY8C9540A-24PVXIT
Manufacturer Infineon
Pin Count 48
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 48-pin SSOP (300mils)_inches
Released Date Feb 24, 2021
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

CY8C9540A-24PVXIT Details

Manufacturer Part Number:
CY8C9540A-24PVXIT
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Infineon Technologies AG
YTEOL:
8
Additional Feature:
IT ALSO OPERATES AT 5 V
Clock Frequency-Max:
24 MHz
JESD-30 Code:
R-PDSO-G48
JESD-609 Code:
e4
Length:
15.875 mm
Moisture Sensitivity Level:
3
Number of Bits:
40
Number of I/O Lines:
40
Number of Ports:
8
Number of Terminals:
48
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SSOP48,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
2.794 mm
Supply Current-Max:
9 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
20
Width:
7.5 mm
uPs/uCs/Peripheral ICs Type:
PARALLEL IO PORT, GENERAL PURPOSE

CY8C9540A-24PVXIT Frequently Asked Questions (FAQs)

Infineon provides a recommended PCB layout guide in their application note AN54472, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise and EMI.
The CY8C9540A-24PVXIT can be configured for I2C or SPI communication through the use of external resistors and capacitors. Infineon provides a configuration guide in their application note AN54471, which includes schematics and component values for each configuration.
The CY8C9540A-24PVXIT has an operating temperature range of -40°C to +85°C, as specified in the datasheet. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability and longevity.
The CY8C9540A-24PVXIT has built-in power management features, including sleep and hibernate modes. Infineon provides a power management guide in their application note AN54473, which includes code examples and register settings for implementing low-power modes.
Infineon recommends using 0.1uF to 1uF decoupling capacitors between the VCC and GND pins of the CY8C9540A-24PVXIT, as close to the device as possible, to filter out noise and ensure stable operation.

Trust Checks

System Verified

CY8C9540A-24PVXIT Overview

Use the download button to access the CY8C9540A-24PVXIT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CY8C9, or try a keyword search, such as Parallel IO Ports
