- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CY8CMBR2016-24LQXI
- Part Number CY8CMBR2016-24LQXI
- Manufacturer Infineon
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 48-Pin QFN-1
- Released Date Jan 18, 2021
- Last Modified Date Jan 25, 2024 9:25 PM UTC
- Pinout / Pin List Click Here (Member Only)
CY8CMBR2016-24LQXI Details
-
Manufacturer Part Number:
CY8CMBR2016-24LQXI
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-48
-
HTS Code:
8542.31.00.30
-
Factory Lead Time:
4 Weeks
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
10
-
JESD-30 Code:
S-XQCC-N48
-
Length:
6 mm
-
Moisture Sensitivity Level:
3
CY8CMBR2016-24LQXI Frequently Asked Questions (FAQs)
-
Infineon provides a recommended PCB layout guide in their application note AN215306, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The CY8CMBR2016-24LQXI has a built-in secure boot mechanism that can be used to ensure the authenticity and integrity of the firmware. Infineon provides a Secure Boot SDK and documentation that outlines the steps to implement secure boot and firmware updates, including cryptographic key management and digital signature verification.
-
The internal oscillator of the CY8CMBR2016-24LQXI has a typical accuracy of ±2% over the operating temperature range. To improve its accuracy, Infineon recommends using an external crystal oscillator or a high-accuracy clock source, such as a real-time clock (RTC) module. Additionally, the oscillator can be calibrated using the on-chip calibration mechanism.
-
To optimize power consumption, Infineon recommends using the device's low-power modes, such as Sleep and Hibernate, and configuring the peripherals and clock frequencies accordingly. Additionally, the use of a power management IC (PMIC) can help to reduce power consumption and extend battery life.
-
The CY8CMBR2016-24LQXI has a maximum junction temperature of 125°C. To ensure reliable operation, Infineon recommends following proper thermal management practices, such as using a heat sink, thermal interface material, and ensuring good airflow around the device. The device's thermal characteristics are outlined in the datasheet and thermal management application note.
Trust Checks
Community Provided
System Verified
Community Approved
CY8CMBR2016-24LQXI Overview

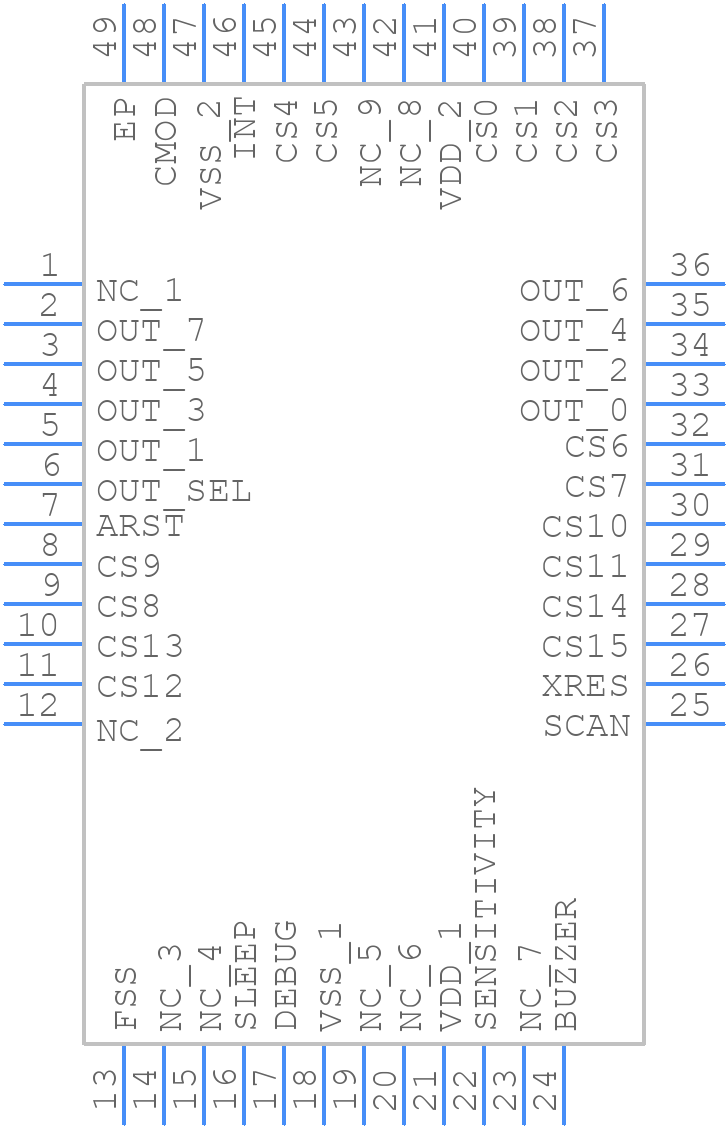

Use the download button to access the CY8CMBR2016-24LQXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8CM,
or try a keyword search, such as Other Interface ICs
