Technical Content
Part Image

CYBLE-202007-01 - Infineon

Description: CYPRESS - INFINEON TECHNOLOGIES - CYBLE-202007-01 - Bluetooth 4.2, Class 1 Module, 1.71V to 5.5V Supply, 400m Range, 1Mbps, -93dBm Sensitivity

Download CYBLE-202007-01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

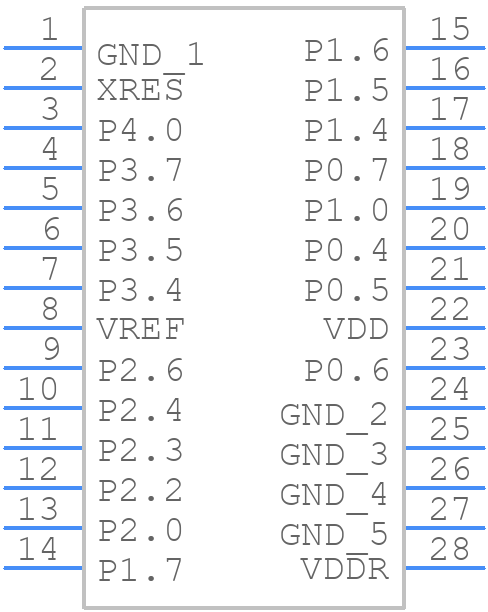

Symbol
CYBLE-202007-01 - Infineon - PCB symbol
click to zoom

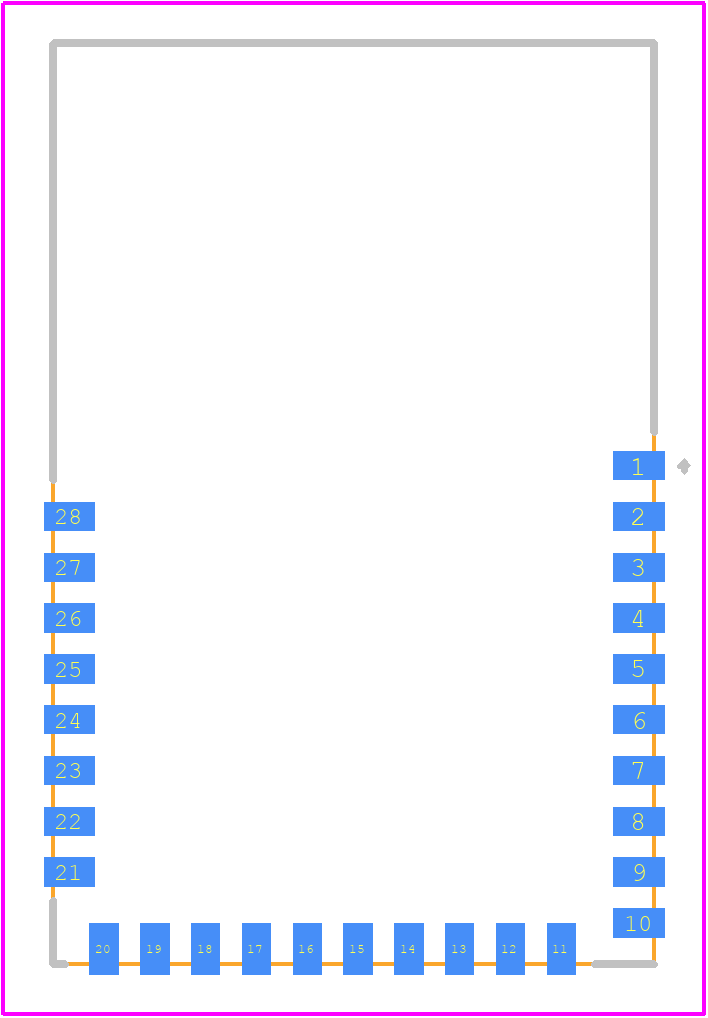

PCB Footprints
CYBLE-202007-01 - Infineon PCB footprint - Other - Other - CYBLE-202007-01-2
click to zoom
3D Models
CYBLE-202007-01 - Infineon - 3D model - Other - CYBLE-202007-01-2
click to zoom

CYBLE-202007-01 Details

  • Manufacturer Part Number:

    CYBLE-202007-01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Usa

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    29 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    4

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

CYBLE-202007-01 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for CYBLE-202007-01 is -40°C to +85°C.
  • To configure the CYBLE-202007-01 for optimal power consumption, use the PSoC Creator or ModusToolbox to set the device to low-power mode, disable unnecessary peripherals, and adjust the clock frequency.
  • The maximum data transfer rate of the CYBLE-202007-01 is 2 Mbps.
  • Yes, the CYBLE-202007-01 can be used with a non-Infineon microcontroller, but it may require additional programming and configuration to ensure compatibility.
  • To implement security features on the CYBLE-202007-01, use the PSoC Creator or ModusToolbox to enable encryption, secure boot, and secure firmware updates.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CYBLE-202007-01 Overview

Use the download button to access the CYBLE-202007-01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYBLE, or try a keyword search, such as Other Telecom ICs
