Part Image

CYBLE-212020-01 - Infineon

Description: CYPRESS SEMICONDUCTOR - CYBLE-212020-01 - Bluetooth 4.2, Module, 1.8V to 5.5V Supply, 1Mbps, -87dBm Sensitivity

Download CYBLE-212020-01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

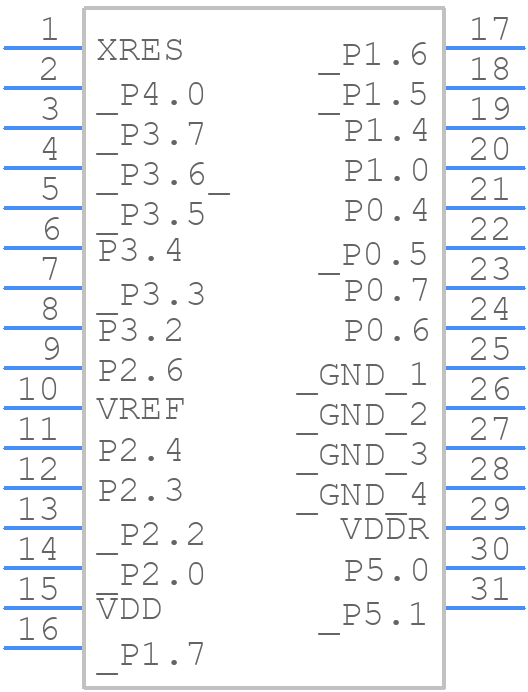

CYBLE-212020-01 - Infineon - PCB symbol
click to zoom
PCB Footprints

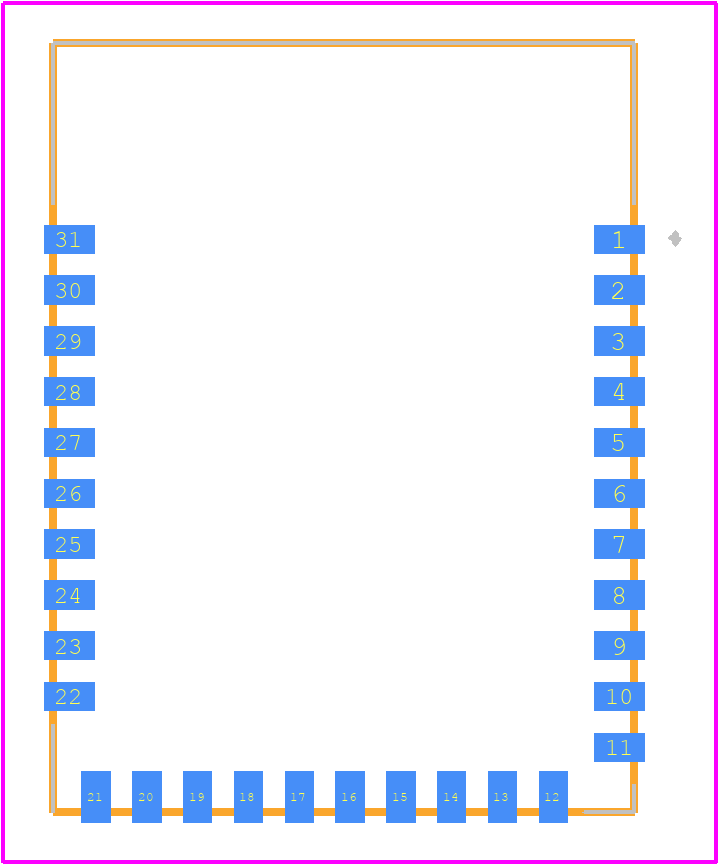

CYBLE-212020-01 - Infineon PCB footprint - Other - Other - CYBLE-212020-01-3
click to zoom
3D Models
CYBLE-212020-01 - Infineon - 3D model - Other - CYBLE-212020-01-3
click to zoom

CYBLE-212020-01 Details

  • Manufacturer Part Number:

    CYBLE-212020-01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Usa

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    29 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    4

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

CYBLE-212020-01 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for CYBLE-212020-01 is -40°C to +85°C.
  • The CYBLE-212020-01 is pre-configured for BLE operation. However, you can use the Infineon ModusToolbox software to customize the device's settings and configure it for your specific application.
  • The maximum transmit power of the CYBLE-212020-01 is +5 dBm.
  • Yes, the CYBLE-212020-01 is a standalone Bluetooth Low Energy module that can be used with any microcontroller that supports UART or SPI interfaces.
  • You can update the firmware of the CYBLE-212020-01 using the Infineon ModusToolbox software and a USB-to-UART bridge.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CYBLE-212020-01 Overview

Use the download button to access the CYBLE-212020-01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYBLE, or try a keyword search, such as Other Telecom ICs
