CYBT-343026-01 - Infineon

Description: CYPRESS SEMICONDUCTOR - CYBT-343026-01 - BLE MODULE, V5.0/EDR, 2.402-2.48GHZ

Download CYBT-343026-01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

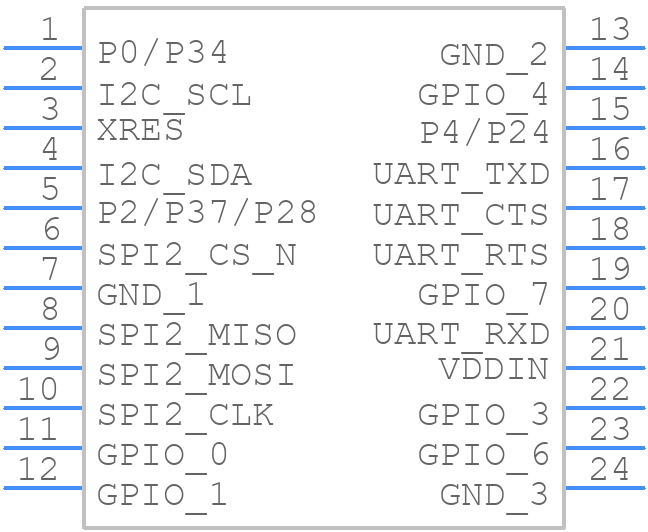

CYBT-343026-01 - Infineon - PCB symbol
click to zoom
PCB Footprints

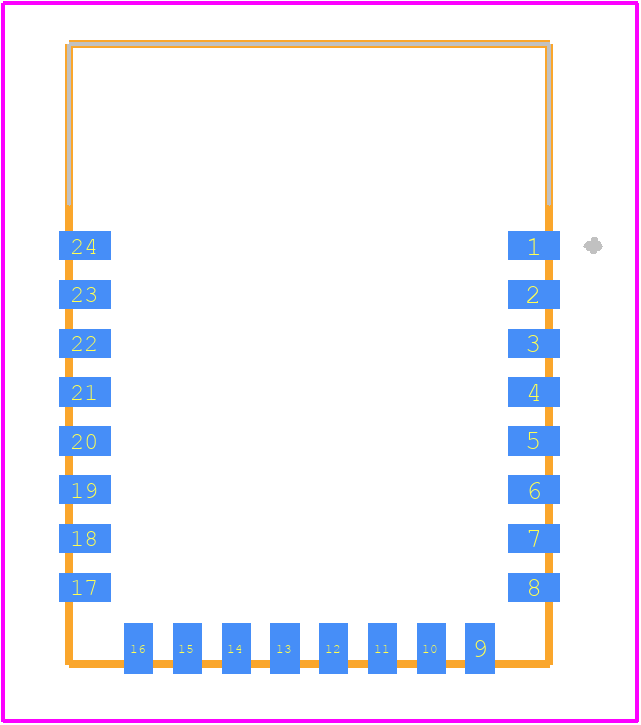

CYBT-343026-01 - Infineon PCB footprint - Other - Other - CYBT-343026-01-3
click to zoom
3D Models
CYBT-343026-01 - Infineon - 3D model - Other - CYBT-343026-01-3
click to zoom

CYBT-343026-01 Details

  • Manufacturer Part Number:

    CYBT-343026-01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    29 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

CYBT-343026-01 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for CYBT-343026-01 is -40°C to 85°C.
  • To configure the device for BLE mode, set the MODE pin to LOW and the PWR_CTRL pin to HIGH. Then, use the SPI interface to configure the device for BLE operation.
  • The maximum transmit power of CYBT-343026-01 is +5 dBm.
  • Firmware updates can be implemented using the SPI interface and a bootloader. The bootloader is stored in the device's ROM and can be accessed by setting the BOOT pin to LOW during power-up.
  • The power consumption of CYBT-343026-01 in sleep mode is typically around 1.5 μA.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CYBT-343026-01 Overview

Use the download button to access the CYBT-343026-01 schematic symbol, PCB footprint, and 3D model.
