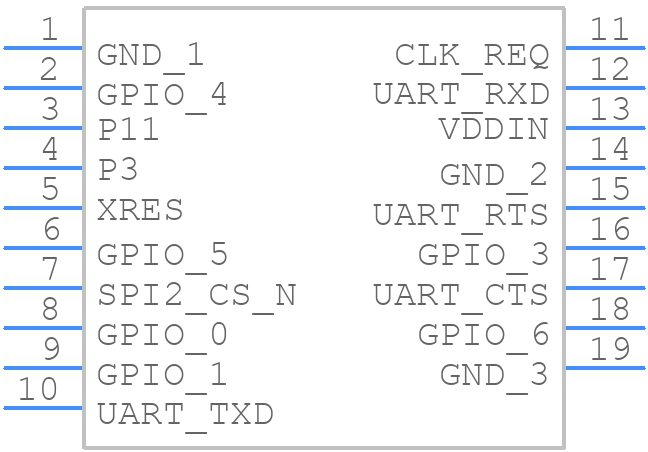

CYBT-353027-02 - Infineon

Description: Cypress Semiconductor CYBT-353027-02 Bluetooth SoC

Download CYBT-353027-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CYBT-353027-02 - Infineon PCB footprint - Other - Other - CYBT-353027-02-3
click to zoom
3D Models
CYBT-353027-02 - Infineon  - 3D model - Other - CYBT-353027-02-3
click to zoom

CYBT-353027-02 Details

  • Manufacturer Part Number:

    CYBT-353027-02

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    29 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

CYBT-353027-02 Frequently Asked Questions (FAQs)

  • The recommended antenna design for the CYBT-353027-02 module is a 50-ohm, quarter-wavelength monopole antenna with a length of around 13 mm to 15 mm. The antenna should be placed at least 10 mm away from any metal components or shields to ensure optimal performance.
  • The CYBT-353027-02 module has a built-in power management unit (PMU) that can be controlled through the HCI interface. You can use the PMU to set the power mode, voltage, and current limits. Additionally, you can use external power management ICs to regulate the power supply to the module.
  • The CYBT-353027-02 module is rated for operation in the -40°C to +85°C temperature range. However, the module's performance and reliability may be affected at extreme temperatures. It's recommended to operate the module within the 0°C to +70°C range for optimal performance.
  • To ensure coexistence with other wireless technologies in the 2.4 GHz band, you can implement adaptive frequency hopping (AFH) and transmit power control (TPC) mechanisms. The CYBT-353027-02 module supports these features, which can be configured through the HCI interface.
  • The recommended PCB layout and design guidelines for the CYBT-353027-02 module include using a 4-layer PCB with a solid ground plane, keeping the module away from high-speed signals and noise sources, and using a decoupling capacitor between the module's power pins and the power supply.
