Infineon provides a recommended PCB layout guide for the CYBT-413055-02 module, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
The CYBT-413055-02 module supports secure boot and firmware updates through the use of Infineon's ModusToolbox software development kit (SDK). The SDK provides tools and APIs for implementing secure boot, firmware updates, and encryption.
The CYBT-413055-02 module is rated for operation in the -40°C to +85°C temperature range, making it suitable for use in a wide range of industrial and commercial applications.
Yes, the CYBT-413055-02 module is designed to be compatible with a wide range of microcontrollers from various manufacturers. However, Infineon provides optimized software and development tools for use with their own microcontrollers, such as the PSoC 6 series.
The typical current consumption of the CYBT-413055-02 module varies depending on the operating mode and transmit power level. However, according to the datasheet, the module typically consumes around 4.5mA in transmit mode and 1.5mA in receive mode.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CYBT-413055-02 Overview

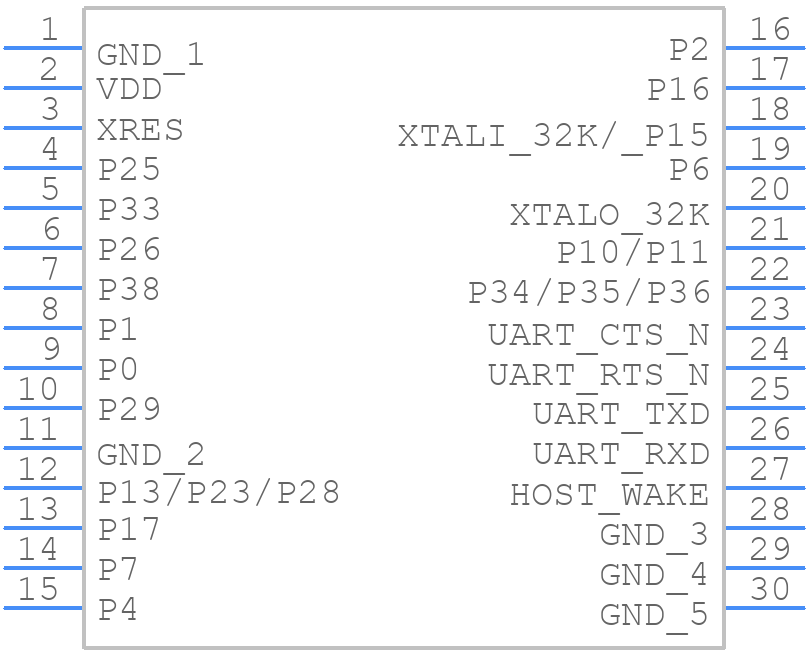

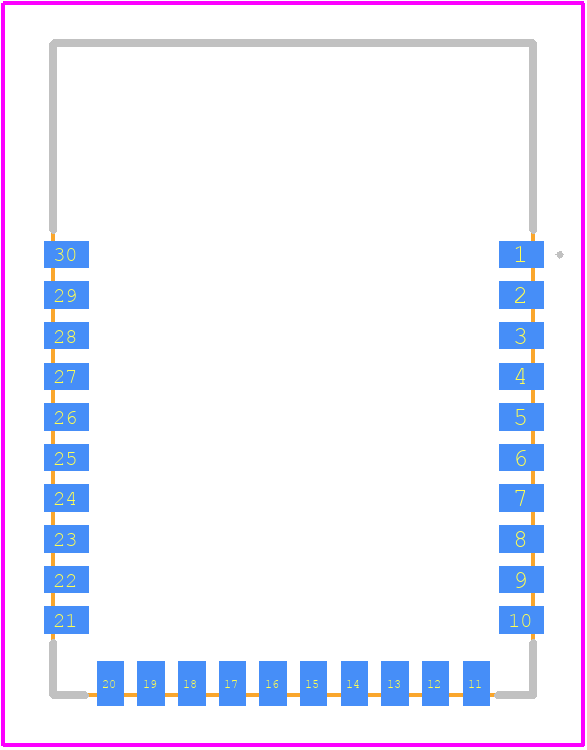

Use the download button to access the CYBT-413055-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYBT-,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
