A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
To ensure reliable operation across the entire operating temperature range, it is essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, the device should be properly decoupled, and the PCB should be designed to minimize thermal gradients.
The critical timing parameters for the CYP15G0101DXB-BBXI include clock frequency, setup and hold times, and output delay. To ensure these parameters are met, it is essential to carefully review the datasheet and application notes, and to simulate the design using tools like IBIS or SPICE models.
To handle ESD protection for the CYP15G0101DXB-BBXI, it is recommended to follow the guidelines outlined in the datasheet and application notes. This includes using ESD protection devices, such as TVS diodes or ESD arrays, and following proper PCB design and handling practices to minimize the risk of ESD damage.
The recommended power sequencing and reset strategies for the CYP15G0101DXB-BBXI involve ensuring that the power supplies are sequenced correctly, and that the device is properly reset during power-up and power-down cycles. This can be achieved using power management ICs, reset generators, and careful PCB design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CYP15G0101DXB-BBXI Overview

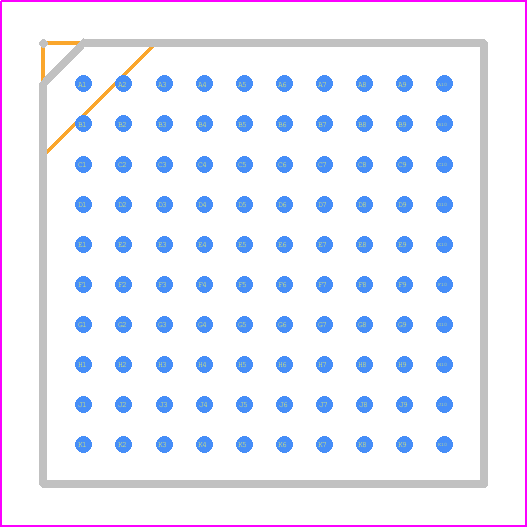

Use the download button to access the CYP15G0101DXB-BBXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYP15,
or try a keyword search, such as Network Interfaces
