Infineon provides a recommended PCB layout guide in their application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The CYPD2134-24LQXI is a programmable device, and configuration for USB-C PD applications requires setting up the device's registers and firmware. Infineon provides a software development kit (SDK) and documentation to help with configuration and customization for specific use cases.
The CYPD2134-24LQXI has an operating temperature range of -40°C to +105°C, as specified in the datasheet. However, it's essential to consider the thermal management of the device and the overall system design to ensure reliable operation within this range.
While the CYPD2134-24LQXI is primarily designed for USB-C applications, it can be used for other USB applications with some modifications. However, this may require additional components and custom firmware development. It's recommended to consult with Infineon's technical support or a qualified engineer to determine the feasibility of using the device for non-USB-C applications.
Infineon provides a range of tools and resources to help troubleshoot issues with the CYPD2134-24LQXI, including debug software, application notes, and technical support. It's essential to follow a systematic approach to troubleshooting, including reviewing the datasheet, checking the device's configuration and firmware, and using debug tools to identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CYPD2134-24LQXI Overview

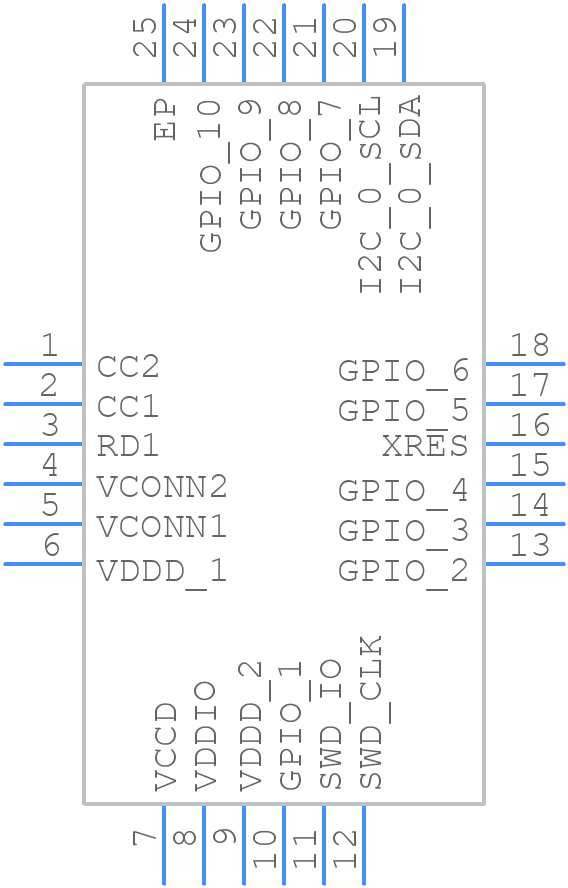

Use the download button to access the CYPD2134-24LQXI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYPD2,
or try a keyword search, such as Bus Controllers
