Infineon provides a recommended PCB layout guide in their application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The CYPD4225-40LQXIT is a programmable device, and configuration for USB-C PD applications requires setting the device's registers using the I2C interface. Infineon provides a software development kit (SDK) and a configuration tool to simplify the process. Refer to the CYPD4225-40LQXIT programming guide and the SDK documentation for more information.
The CYPD4225-40LQXIT has a maximum current rating of 5A per channel. It has built-in overcurrent protection (OCP) and short-circuit protection (SCP) features, which can be configured to detect and respond to overcurrent conditions. The device will automatically limit the current or shut down in case of an overcurrent event to prevent damage.
The CYPD4225-40LQXIT is a power delivery controller, not a voltage regulator or power converter. It controls external power FETs and provides feedback to the system to regulate the output voltage. The device relies on external components, such as power FETs, inductors, and capacitors, to perform the actual power conversion and voltage regulation.
The CYPD4225-40LQXIT has an operating temperature range of -40°C to 105°C. The device has built-in thermal protection features, including overtemperature detection and thermal shutdown. It is essential to follow proper thermal management practices, such as providing adequate heat sinking and airflow, to ensure reliable operation within the specified temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CYPD4225-40LQXIT Overview

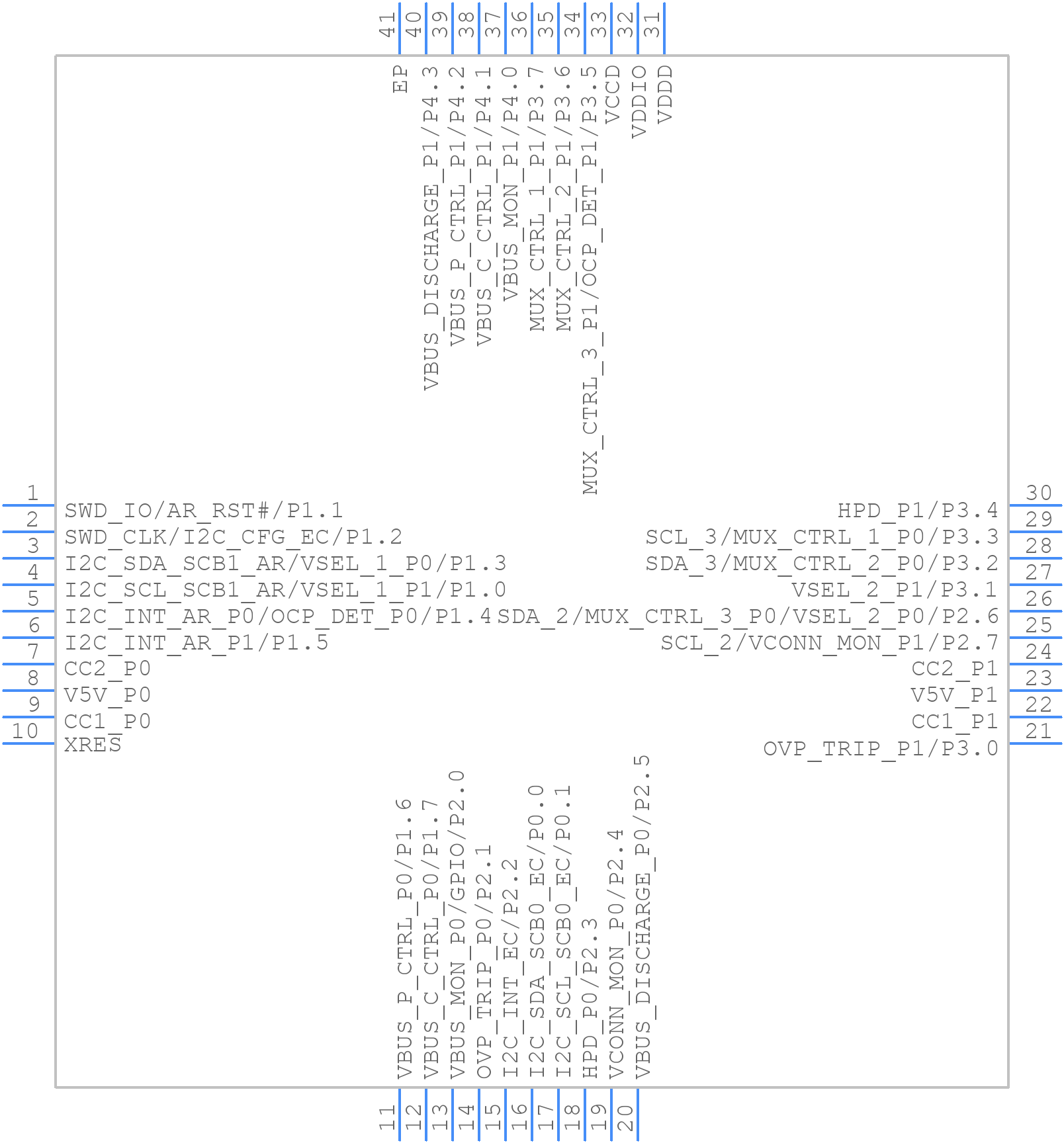

Use the download button to access the CYPD4225-40LQXIT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYPD4,
or try a keyword search, such as Bus Controllers
