Infineon provides a recommended PCB layout guide in their application note AN244144, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
The CYW20719B1KUMLG has a built-in secure boot mechanism that ensures the authenticity and integrity of the firmware. For firmware updates, Infineon recommends using their WICED Studio SDK, which provides a secure firmware update mechanism using Transport Layer Security (TLS) and Elliptic Curve Cryptography (ECC).
The CYW20719B1KUMLG is rated for operation from -40°C to +85°C, but it's recommended to operate within the -20°C to +70°C range for optimal performance and reliability.
To optimize power consumption, Infineon recommends using the device's low-power modes, such as sleep mode and deep sleep mode, and optimizing the firmware to minimize active mode operation. Additionally, using a low-power oscillator and optimizing the radio transmission power can also help reduce power consumption.
The maximum transmit power for BLE is +5 dBm, and for Wi-Fi, it's +18 dBm. However, the actual transmit power can be adjusted using the device's software configuration to comply with regional regulatory requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CYW20719B1KUMLG Overview

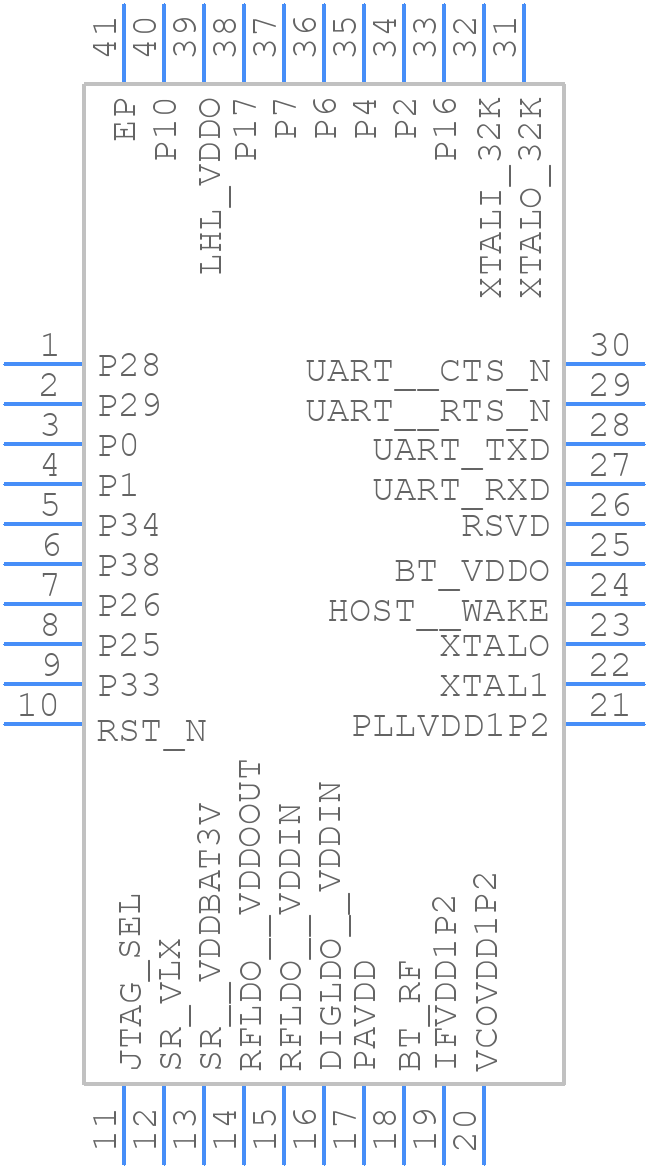

Use the download button to access the CYW20719B1KUMLG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYW20,
or try a keyword search, such as Other Telecom ICs
