D0818-42 - Harwin

Description: IC Socket: 9+9 Pos Receptacle DIL Straight Wire Wrap

Download D0818-42 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
D0818-42 - Harwin - PCB symbol
click to zoom
PCB Footprints

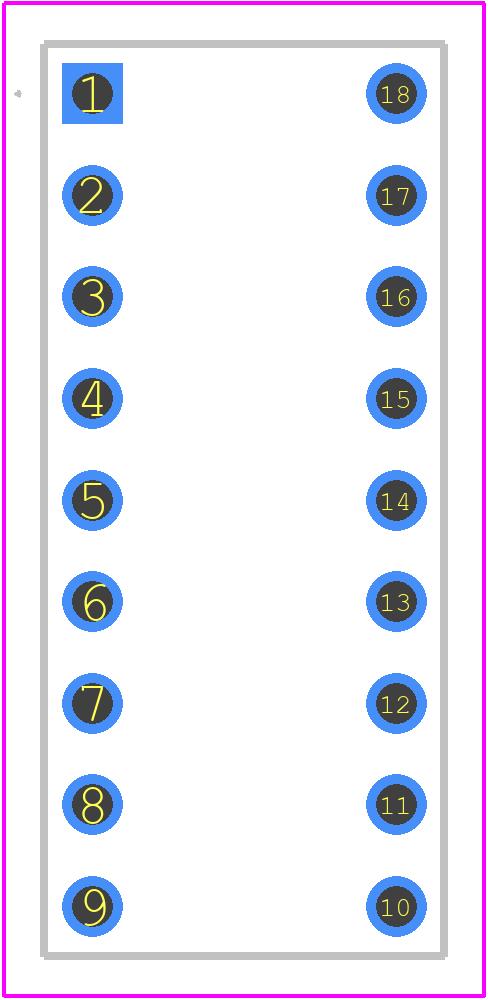

D0818-42 - Harwin PCB footprint - Other - Other - D0818-42-2
click to zoom
3D Models
D0818-42 - Harwin - 3D model - Other - D0818-42-2
click to zoom

D0818-42 Details

  • Manufacturer Part Number:

    D0818-42

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.3

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.394 inch

  • Body Depth:

    0.178 inch

  • Body Length:

    0.898 inch

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP18

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER

  • Insulation Resistance:

    10000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    18

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    WIRE WRAP

D0818-42 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of D0818-42 is 0.5 Nm to 1.5 Nm, as specified by Harwin's application notes.
  • Yes, D0818-42 is designed to withstand high-vibration environments. Harwin's testing has shown that it can operate reliably in applications with vibrations up to 10g, 10-2000 Hz.
  • The maximum wire size that can be used with D0818-42 is 1.5 mm² (16 AWG). Using larger wire sizes may compromise the connector's reliability and performance.
  • Yes, D0818-42 is designed to operate in harsh environments. It has an operating temperature range of -40°C to +125°C and can withstand humidity up to 95% RH. However, it's essential to follow Harwin's guidelines for environmental considerations.
  • D0818-42 is rated for a maximum current of 12A per contact. If your application requires higher current carrying capacity, you may need to consider alternative connectors or consult with Harwin's technical support team.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

D0818-42 Overview

Use the download button to access the D0818-42 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D0818, or try a keyword search, such as Sockets and Chip Carriers
