D2-24044-MR - Renesas Electronics

Description: The D2-IPS family (D2-24044) device is a high performance, integrated Class-D amplifier power stage. The four power stage outputs are configurable as four separate Half-Bridge outputs, as two Full-Bridge outputs, or combinations of Half-Bridge and Full-Bridge. Individual power stage overload monitoring, on-chip temperature monitoring, and common alert logic outputs provide protection to integrate with the final system's controller.

Download D2-24044-MR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

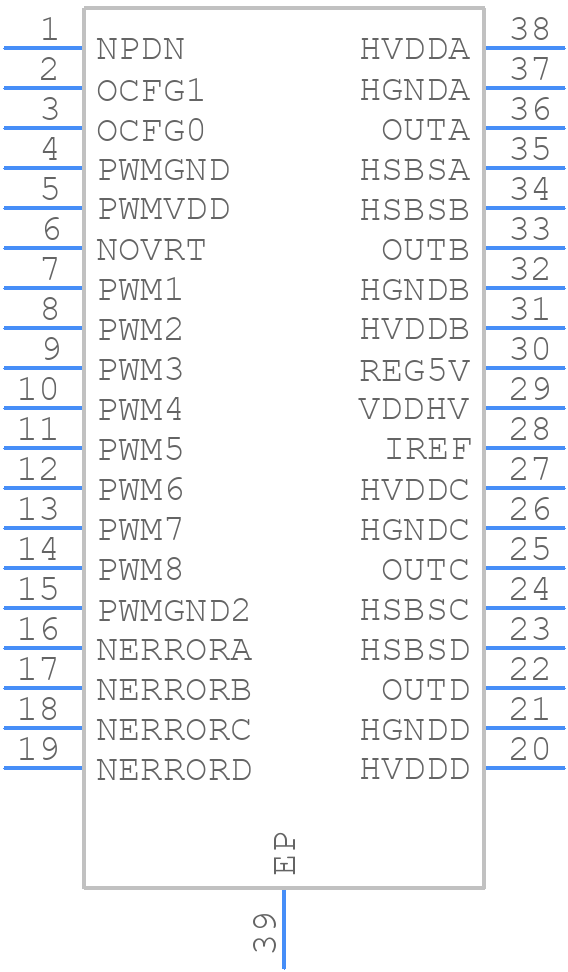

D2-24044-MR - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
D2-24044-MR - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M38.173C-+
click to zoom
3D Models
D2-24044-MR - Renesas Electronics - 3D model - Small Outline Packages - M38.173C-+
click to zoom

D2-24044-MR Details

  • Manufacturer Part Number:

    D2-24044-MR

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-EP

  • Pin Count:

    38

  • Manufacturer Package Code:

    M38.173C

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

D2-24044-MR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the D2-24044-MR is -40°C to 125°C.
  • To ensure reliable communication, use proper shielding, grounding, and decoupling techniques. Additionally, consider using error-checking protocols and implementing retries in your communication protocol.
  • The maximum current rating for the D2-24044-MR's I/O pins is 4mA per pin. Exceeding this rating may cause damage to the device.
  • The D2-24044-MR is not designed for safety-critical applications. If you need a device for a safety-critical application, consider using a device that is specifically designed and certified for such use cases.
  • To troubleshoot issues with the power-on reset circuitry, check the power supply voltage, ensure proper decoupling, and verify that the reset pin is properly connected and configured.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

D2-24044-MR Overview

Use the download button to access the D2-24044-MR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D2-24, or try a keyword search, such as Audio/Video Amplifiers
