Description:The D2-4 Family (D2-41051 and D2-41151 (D2-41x51-QR)) devices are complete System-on-Chip (SoC) Audio Processor and Class-D Amplifier Controllers that offer a powerful yet very cost effective audio solution for high volume consumer products, including digital TV systems, PC multimedia speakers, and portable device docking stations. This 4th generation Digital Audio Processor (D2-4 family) device combines extensive integrated DSP processing and configurable audio processing algorithms for complete audio syst
Renesas provides a recommended PCB layout guide in their application note (R01AN4333EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate protection components.
While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device's performance at temperatures above 85°C to ensure reliable operation.
Yes, the D2-41051-QR is designed to withstand vibrations up to 10G (rms) in the frequency range of 10Hz to 2kHz. However, it's essential to follow Renesas' guidelines for mounting and securing the device to ensure reliable operation.
Renesas provides a troubleshooting guide in their application note (R01AN4333EJ0100) which covers common issues, such as power-on reset, clock oscillation, and communication errors. Additionally, Renesas offers technical support and FAQs on their website.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D2-41051-QR Overview

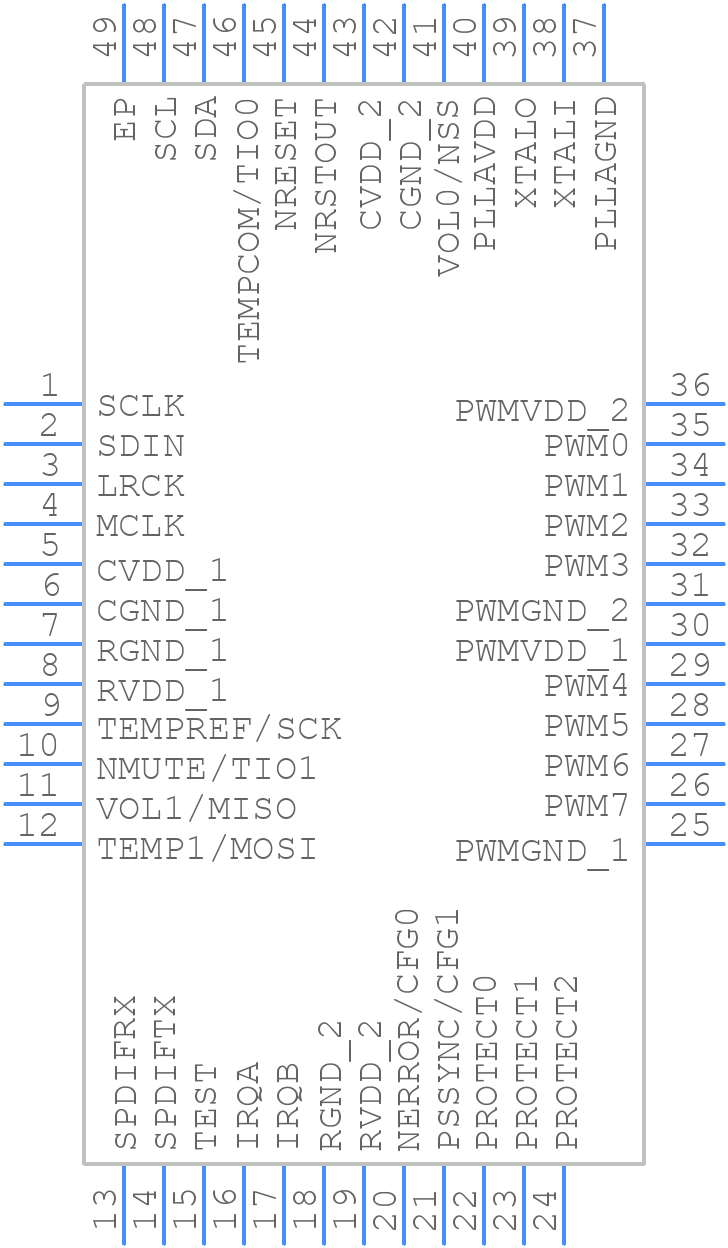

Use the download button to access the D2-41051-QR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D2-41,
or try a keyword search, such as Other Consumer ICs
